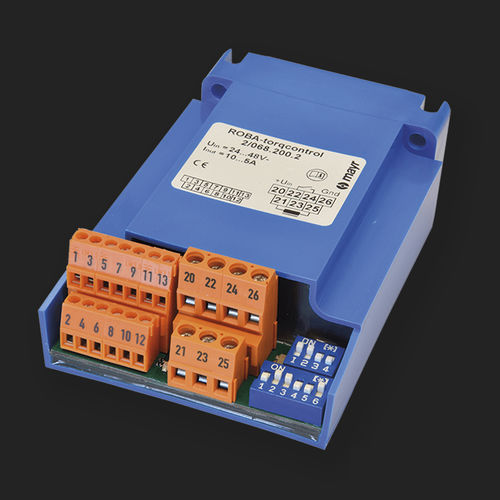

Brake controller with brake torque adjustment ROBA®-torqcontrol

electromagnetic

ROBA®-torqcontrol ✓ Targeted braking torque control ✓ Delays devices and machines gently ✓ Monitors brakes without sensors ✓ Detects errors before they occur ✓ Can be integrated into existing systems ROBA®-torqcontrol monitoring modules are used to supply, monitor and control released ROBA-stop® safety brakes. Movement monitoring of the armature disk for released ROBA-stop® safety brakes is possible without a sensor. ✓ Operation of the consumer with overexcitation and/or power reduction ✓ Regulated output voltage (with reduction) ✓ Simple setting of holding voltage and overexcitation time via DIP switch ✓ Fast or slow switch-off ✓ Armature disk condition detection (release and drop detection) ✓ Preventive function monitoring (wear and fault detection) - warning of critical conditions is given before the brake can no longer be operated, e.g. in the event of wear ⇨ Analog OUT ✓ Control of the resulting clamping force of the brake rotor for adapting the braking torque ✓ Wide input voltage range (24....48 VDC) ✓ Maximum output current I (10....5 A) ✓ Maximum overexcitation current I O (20....10 A) ✓ Automatic reduction to holding voltage UH ✓ Potential separation of power terminal and control terminal
