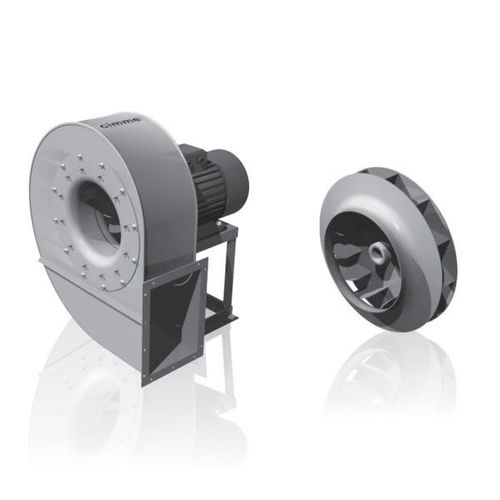

Centrifugal fan GCO series

suctionfor chemical applicationsfor pneumatic conveying

Sizes: 310 .. 1400 Delivery: 14 .. 1475 m³/min Total pressure: 108 .. 695 kgf/m² Installed motor power: 1,1 .. 132 kW Admitted fluid: Very dusty air Maximum working temperature: +80°C (+150°C *) For suction of very dusty air. The main feature of this series is the association of high efficiency (due to the use of an impeller with overturned blades, special profile) with the suction of dusty fluids or with granulated materials. They are installed in joinery workshops (to convey sawdust and wood chips – excepting filamentous materials), in mechanic industries (suction of metal trimmings and grinding chips), in pneumatic conveying at cement, ceramics, milling factories, tanneries, foundries, textile and chemical industries and in all applications where poisonous air needs to be conveyed at low and medium pressure. *) +150 °C with cooling fan
