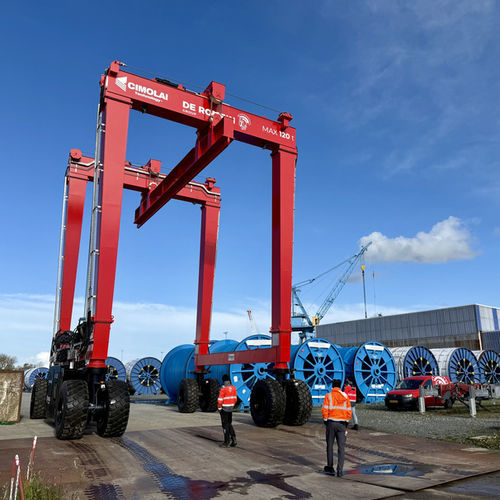

Electric straddle carrier MST 120

for heavy loadsself-propelledadjustable-height

Overview
The MST 120 is a tyre-mounted straddle carrier designed to handle and transport reels and other bulky or irregular loads in demanding industrial environments. It is engineered for heavy-duty mobile transport with configurable layouts to meet project-specific requirements.

Key features

• Double-girder structure
  Provides enhanced structural strength and compatibility with a wide range of spreaders.
• 120-ton lifting capacity
  Rated for reliable handling of heavy, oversized and complex loads.
• Electronic steering system
  Delivers precise maneuverability in confined or congested operating areas.

Available configurations

• Single-girder: suited for single or tandem use, appropriate for transporting linear elements such as beams and elongated components.
• Double-girder: offers greater rigidity and supports integration with diverse spreader systems for safe handling of bulky and irregular loads.

Distinctive features

• Fully customizable to customer specifications: load capacity, dimensions, layout, accessories and environmental adaptations.
• Telescopic variants available: extendable in width or height to accommodate varying load sizes.
• Built to operate in extreme environmental conditions, including wide temperature ranges, high humidity and aggressive weather.
• Available in a full electric version for emission-free operations where required.

Technical specifications

• Type: Tyre-mounted mobile straddle carrier
• Model: MST 120
• Lifting capacity: 120 tons (nominal)
• Structure: Double-girder (single-girder option available)
• Steering: Electronic steering system for precise maneuvering
• Customization: Load capacity, dimensions, layout, accessories and configuration tailored to project requirements
• Telescopic options: Versions extendable in width or height
• Environmental capability: Designed for extreme environmental and weather conditions
• Power options: Can be supplied in a full electric version
