Precast beam straddle carrier MST 100

for civil engineeringfor heavy loads

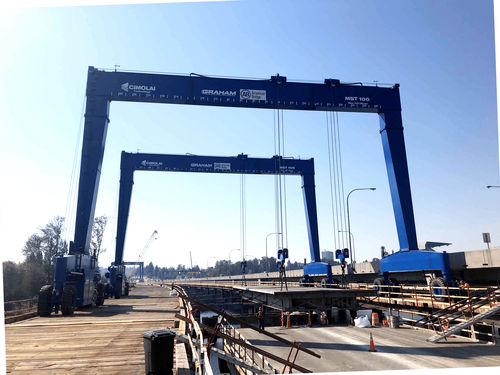

Straddle Carrier on tyres (four units) work in tandem and in pairs to handle and transport precast elements for the construction of a bridge in Seattle. The particularity of these N.4 Mobile Straddle Transporters MST 100 US ton is the capability of unloading from truck and proceed with launching of the beams in the final position. Four independent lifting points control pitch and roll during positioning of the beams. Cimolai Technology’s mobile straddle transporter are designed to offer maximum operational versatility and structural strength in the most demanding applications. Each unit is fully customizable to customer specifications: load capacity, dimensions, layout, accessories and environmental conditions. Available in two main structural configurations: Single-girder: ideal for single or tandem use, perfect for transporting linear elements such as beam elements or elongated artifacts. Double-girder: more robust and suitable for integration with a wide range of spreaders, for safe handling of bulky and irregular loads. Distinctive features: Load capacity customizable according to the project (from tens to hundreds of tons) Telescopic versions: extendable in width or height to accommodate loads of varying sizes Designed to work in extreme conditions, withstanding severe temperature fluctuations, humidity and aggressive weather conditions Electronic steering system for precise maneuvering even in tight spaces Can be made in full electric version, for sustainable and environmentally friendly handling.
