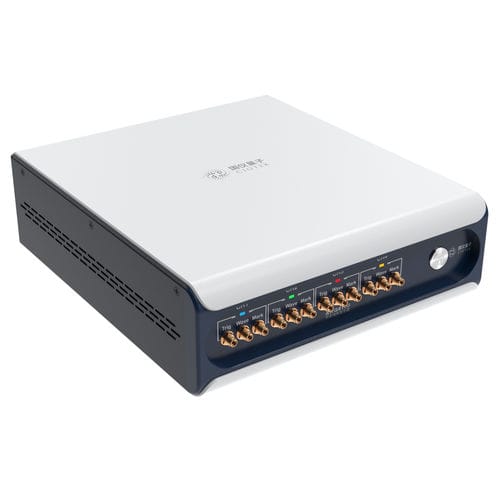

Arbitrary waveform generator AWG4100

synchronouslaboratory

IQTEK AWG4100 is a multi-channel arbitrary waveform generator with high performance. It has four independent channels for waveform output and each channel can provide single-ended waveform output with a sampling rate as high as 1.2 GSa/s and a vertical resolution of 16 bits. Each channel has the maximum storage depth of 512 MSa and it is equipped with flexible user-defined waveform editing function and sequence playing function which can easily satisfy complicated waveform demands under various scenarios. Support the synchronous operation for multiple devices that expands more channels With flexible playing modes to support both independent and combination playing Each channel can output Marker signals independently and input Trigger signals independently. Each channel has a 1.2 GSa/s sampling rate with 330MHz analog bandwidth Four-Channel independent output Maximum output amplitude 5Vpp Resolution up to 16 bits Support sequential playing of complicated waveform
