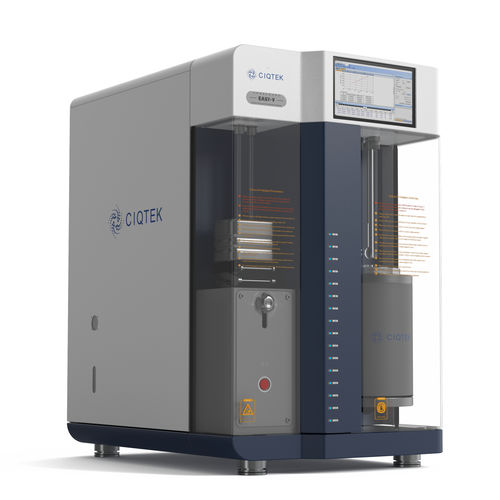

Porosimetry analyzer EASY-V 1220

gasmonitoringlaboratory

EASY-V 1220 is the BET specific surface area and pore size analysis instrument developed independently by CIQTEK, using the static volumetric method. The technology obtains several international certifications and reaches the world-class level. The CIQTEK EASY-V series products have been delivered to multiple universities and research institutions worldwide and are well-received by our users. ▪ Specific surface area testing, range 0.0005 (m2/g) and above. ▪ Pore size analysis: 2 nm-500 nm. ▪ Two analysis stations, simultaneous testing of 2 samples. ▪ Equipped with the two-stage vacuum pump. Embedded test computer, safe and stable. 10-inch capacitive touch screen, tablet control experience. The ball screw integrated lifting system, controlled by the stepper motor, overcomes the shortcomings of common screw types easy to jam, and so on. The protective safety door can prevent safety accidents caused by accidental contact with low-temperature liquid nitrogen and eliminate the impact of environmental factors on the test. 2 sample pipe joints and 1 P0 pipe joint per test module. P0 pipe can be used for specific surface area testing in a cost-effective manner. Independent 2 sample processing ports can be performed simultaneously with sample testing to improve testing efficiency. 4L stainless steel inner Dewar bottle overcomes the fragile defect of glass Dewar bottle, and high thermal insulation ensures continuous test requirements for more than 72hrs.
