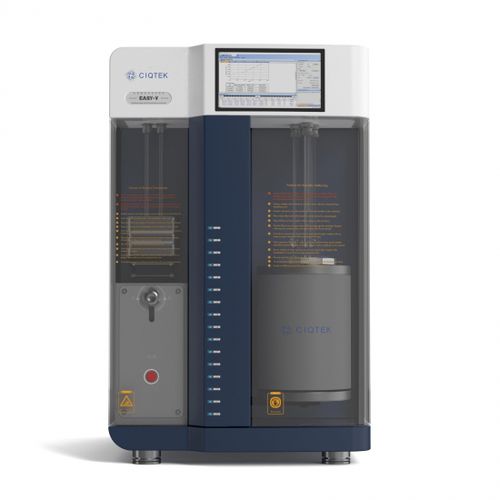

Porosimetry analyzer EASY-V 3220 & 3210

gaslaboratoryfor quality control

CIQTEK EASY-V 3220 & 3210 are the BET-specific surface area and pore size analysis instruments, using the static volumetric method. ▪ Specific surface area testing, range 0.0005 (m2/g) and above. ▪ Pore size analysis: 0.35 nm-2 nm (micropore), micropore size distribution analysis; 2 nm-500 nm (mesopore or macropore). ▪ Two analysis stations. EASY-V 3220: simultaneous testing of 2 samples; EASY-V 3210: alternate testing of 2 samples. ▪ Equipped with the molecular pump. ♦ Embedded test computer, safe and stable. 10-inch capacitive touch screen, tablet control experience. ♦ 2 sample pipe joints and 1 P0 pipe joint per test module. P0 pipe can be used for specific surface area testing cost-effectively. ♦ The protective safety door can prevent safety accidents caused by accidental contact with low-temperature liquid nitrogen and eliminate the impact of environmental factors on the test. ♦ Independent 2 sample processing ports can be performed simultaneously with sample testing to improve testing efficiency. ♦ 4L stainless steel inner Dewar bottle overcomes the fragile defect of glass Dewar bottle, and high thermal insulation ensures continuous test requirements for more than 72 hours. ♦ The ball screw integrated lifting system, controlled by the stepper motor, overcomes the shortcomings of common screw types easy to jam, and so on.
