Earth-leakage protection relay RGU-RAL series DIN raildigitalprogrammable
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- earth-leakage
- Mounting
- DIN rail
- Other characteristics
- digital, programmable
- Trigger voltage
230 V
Description

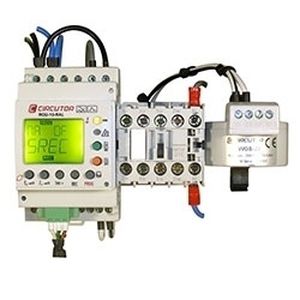

Electronic earth leakage protection relay, used to connect the external toroidal transformers of the WG / WGS / WGC Series
Self-reclosing with a programmable earth leakage trip
Superimmunized type A Relay, with high frequency current filtering and high immunity. Monitoring in true RMS
The backlight display shows the following information:
Adjustment values
Instantaneous leakage current
It has two independent outputs:
Trip relay
End-of-reclosing-sequence interlocking relay
External input for remote control functions (230 Vac)
Automatic test of the connection and external transformer status
Optional RS-485 Communications: type RGU-10C RAL
Reduced dimensions: 3 modules
Assembly on DIN rail 46277 (EN-50022).
Optional assembly on 72 x 72 panel with accessory M5ZZF1.
