Electrical network analyzer CVM-NET4powervoltagefor integration
Add to favorites
Compare this product
Characteristics
- Application domain
- for electrical networks
- Measured value
- power, voltage
- Configuration
- for integration, compact
- Other characteristics
- digital, RS485
Description

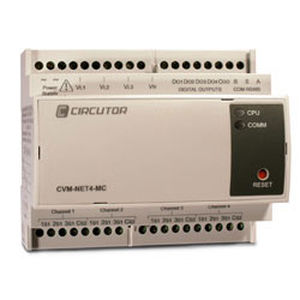

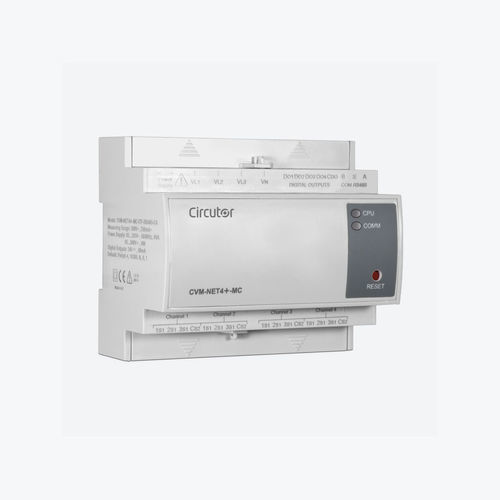

CVM-NET4-MC is a Power Analyzer used to measure balanced and unbalanced threephase networks; specifically designed to take measurements from 4 different points of the installation. It has a single three-phase voltage input, with 4 three-phase channels for current signal inputs coming from the efficient Circutor MC transformers (see M7 catalogue). The data acquired by the analyzer is transmitted via the RS-485 communications bus with the Modbus/RTU protocol to the supervision SCADA.
The main features are as follows:
- DIN rail format with only 6 modules
- Reads 4 current channels via efficient MC-series transformers (../250mA)
- RS-485 Communications (Modbus RTU)
- 4 Programmable digital outputs
- Compatible with PowerStudio / PowerStudio Scada / PowerStudio Scada Deluxe software.
