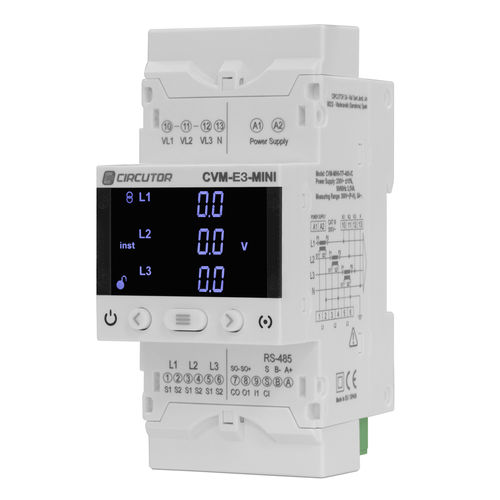

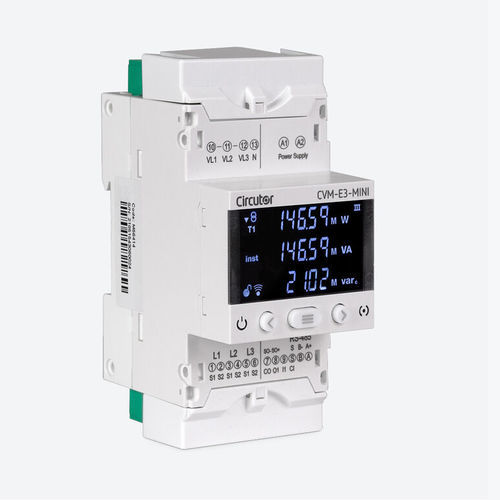

Electrical network analyzer CVM-E3-MINI

powervoltagecompact

Three-phase power analyzer (balanced and unbalanced) for mounting on DIN rail, very compact, with measurements in 4 quadrants. Other features: Current measurement .../5 or .../1 A or .../250 mA With ITF technology: ITF galvanic insulation protection DIN rail with only 3 modules High-contrast backlit display 72 x 72 mm panel mounting with front adapter RS-485 communication (Modbus/RTU up to 56 kbps) (Bacnet up to 38 kbps) One transistor output (programmable) One digital input for selecting tariff or logic states Sealable terminal cover Applications Control application in low- and medium-voltage distribution panels and switchboards where it is necessary to place an analyzer on the DIN rail due to problems of space. Alarm control. Maximum value, minimum value and programmable delay. Control of active or reactive energy by impulse output. Capture of maximum and minimum instantaneous data of electrical parameters measured.
