1-axis galvanometer scanner GVM-3113

laserfor medical applicationshigh-precision

Overview

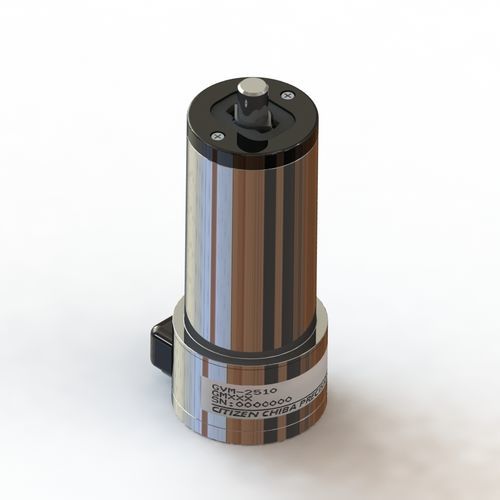

The GVM-3113 and GVMW-3113 are galvanometer scanners for precision laser beam steering. GVM-3113 provides a mechanical maximum scan angle of ±20° while GVMW-3113 extends the range to ±40°. Both models weigh 570 g and deliver a repeatability of 8 µrad. These scanners are intended for integration with compatible mirrors and servo drivers.

Key specifications

• Maximum Scan Angle: GVM-3113 ±20° (mechanical); GVMW-3113 ±40° (mechanical)
• Rotor Inertia: 17.1 g・cm²
• Coil Resistance: 1.24 ±10 % Ω
• Coil Inductance: 0.592 ±10 % mH
• Torque Constant: 57.3 ±10 % mN・m/A
• Back EMF Voltage: 1.00 ±10 % mV/deg/sec
• Peak Current: 20 A (Max.)
• Maximum Coil Temperature: 110 °C
• Weight: 570 g
• Input Signal: 30 mA (Typ.)

Dynamic specifications

• Repeatability: 8 µrad
• Non-Linearity (±10°): 0.1 % (Max.)
• Non-Linearity (±20°): GVMW-3113 0.3 % (Typ.)
• Non-Linearity (±30°): GVMW-3113 0.8 % (Typ.)
• Non-Linearity (±40°): GVMW-3113 3.0 % (Typ.)
• Offset Drift: 10 µrad/°C (Max.)
• Gain Drift: 30 ppm/°C (Typ.)
• Output Signal - Common Mode: GVM-3113 350 µA (Typ.), GVMW-3113 468 µA (Typ.)
• Output Signal - Differential Mode: GVM-3113 11 µA/deg (Typ.), GVMW-3113 10 µA/deg (Typ.)
• Step Response Time: depends on mirror size and scanner combination; see notes

Compatibility and notes

• All listed specifications are assured when used with Citizen Chiba servo driver and mirror.
• All angles are expressed in mechanical degrees.
• Step response and dynamic behavior depend on the combination of mirror size and scanner model.
