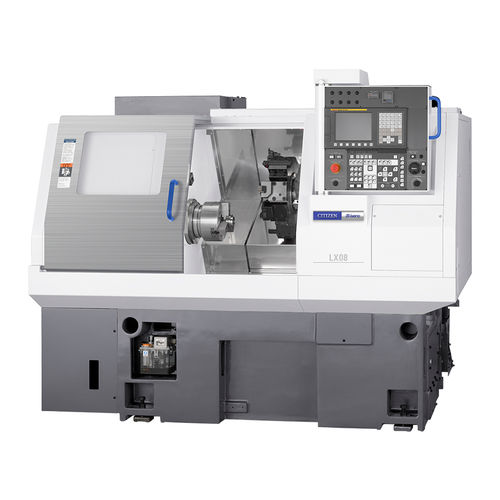

CNC turning machine LX-08C2-axis10 toolswith turret
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 10 tools
- Other characteristics
- with turret, single-spindle
- Diameter
210 mm
(8.27 in)- Spindle speed
Min.: 40 rpm
(251.327 rad.min-1)Max.: 4,000 rpm
(25,132.741 rad.min-1)- Maximum cutting diameter
320 mm
(13 in)- Axe X
175 mm
(7 in)- Axe Z
435 mm
(17 in)- Nominal power
7.5 kW, 11 kW
(10.2 hp, 15 hp)- Overall lenght
2,035 mm
(80 in)- Overall width
1,690 mm
(67 in)- Weight
4,500 kg
(9,921 lb)
Description
By having the wedge-clamp-type direct mount 10-station tool turret for 25-byte, it becomes possible to operate hard cutting
