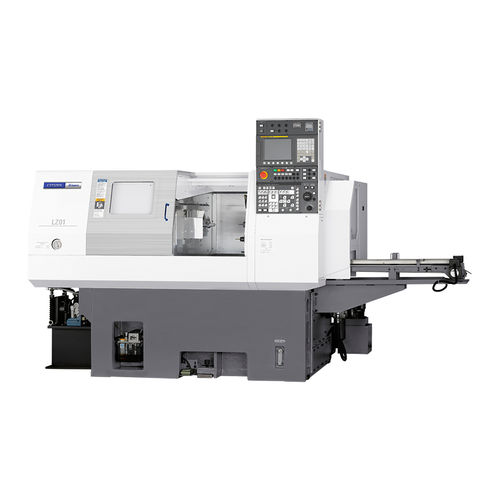

CNC turning center LZ-01R series2-axis3-axis12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis, 3-axis
- Number of tool stations
- 12 tools
- Other characteristics
- high-speed, with turret, 1-spindle, rigid
- Diameter
70 mm
(2.76 in)- Spindle speed
Max.: 6,000 rpm
(37,699.112 rad.min-1)Min.: 60 rpm
(376.991 rad.min-1)- Maximum part length
80 mm
(3 in)- Axe X
245 mm
(10 in)- Axe Z
240 mm
(9 in)- Nominal power
5.5 kW, 7.5 kW
(7.5 hp, 10.2 hp)- Overall lenght
2,100 mm
(83 in)- Overall width
1,555 mm
(61 in)- Overall height
1,680 mm
(66 in)- Weight
3,600 kg, 4,000 kg
(7,937 lb, 8,818 lb)
Description
The tool post is a single slide with a y-axis (01RY) mechanism only that achieves both rigidity and high-speed travel with the x-axis as the main axis and a linear guide for the z-axis
A wide range of automation needs are met using an enhanced system configuration centered on the loader head
