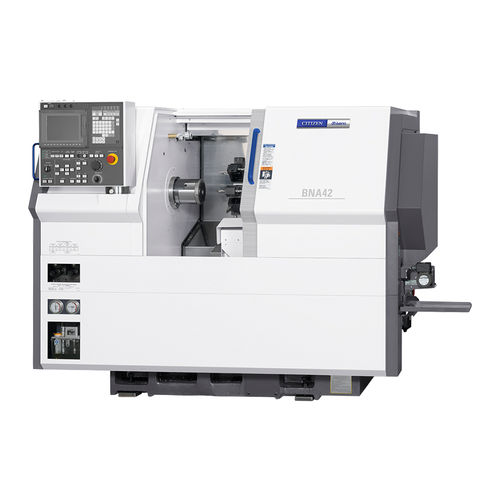

CNC automatic lathe BNA42MSY
2-axisfor bar machiningdouble-spindle

CNC automatic lathe
CNC automatic lathe
CNC automatic lathe
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
2-axis
Applications
for bar machining
Other characteristics
double-spindle, with turret
Diameter

34 mm, 42 mm
(1.34 in, 1.65 in)

Spindle speed

5,000 rpm, 6,000 rpm
(31,415.927 rad.min-1, 37,699.112 rad.min-1)

Rapids on X

20,000 mm/min
(13 in/s)

Rapids on Z

20,000 mm/min
(13 in/s)

Nominal power

3.7 kW, 5.5 kW, 7.5 kW, 11 kW
(5 hp, 7.5 hp, 10.2 hp, 15 hp)

Overall lenght

2,388 mm
(94 in)

Overall width

1,450 mm
(57 in)

Overall height

1,620 mm
(64 in)

Weight

3,000 kg
(6,614 lb)

Description

While it is a 2-spindle, 1-turret machine, it dramatically reduces cycle time thanks to a simultaneous machining through overlapping control A half-indexing mechanism and a tool holder that can be fitted with multiple revolving tools at one position means you'll never feel short of tools
