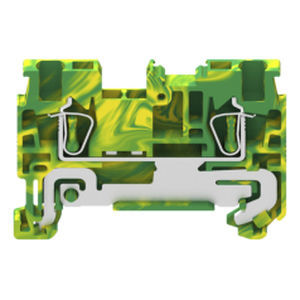

DIN rail-mounted terminal block GUS1.5-102-PEspring cage connectiongroundingIEC
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- spring cage connection
- Other characteristics
- IEC, grounding
- Cross-section
Min.: 0.2 mm²
(0 in²)Max.: 1.5 mm²
(0 in²)
Description
CUL Technical Data (UL1059）
Use Group -
B - C - D
Wire Range -
26-14AWG
IEC Technical Data (IEC 60947-7-2)
Overvoltage Category -
III
Contamination Class -
3
Impulse withstand voltage -
6KV
Material
Insulation Material -
PA66
Flame relardant rating -
UL94V-0
Other Data
Length/Height/Thickness [mm] -
48.7/35.4/4.2
Connection Points -
2
Stripping Length [mm] -
8-10
Type of rail -
DIN 35
Screw/Torque(Max)[N.m] -
/
Operating temperature [ -
-40~+105
