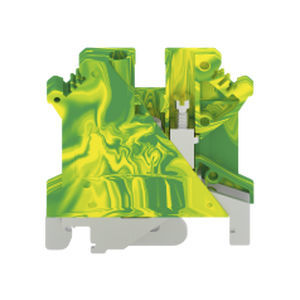

DIN rail-mounted terminal block GUSLKG5-102-PEgroundingIEC
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Other characteristics
- IEC, grounding
- Cross-section
Min.: 0.2 mm²
(0 in²)Max.: 6 mm²
(0.01 in²)
Description
CUL Technical Data (UL1059）
Wire Range -
24-10
IEC Technical Data (IEC 60947-7-2)
Overvoltage Category -
III
Contamination Class -
3
Material
Insulation Material -
PA66
Flame relardant rating -
UL94V-0
Conductor Material -
Copper alloy
Plating of conductor surface -
Ni plated
Other Data
Length/Height/Thickness [mm] -
42.50/46.02/6.20
Connection Points -
2
Stripping Length [mm] -
8
Type of rail -
DIN 35 / DIN 32
Screw/Torque(Max)[N.m] -
M3/0.6-0.8
Operating temperature [ -
-40℃~+105℃
