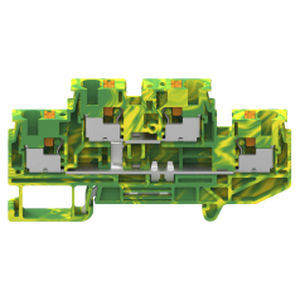

DIN rail-mounted terminal block GUV4-202-PEpush-ingroundingIEC
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- push-in
- Other characteristics
- IEC, grounding
- Cross-section
Min.: 0.2 mm²
(0 in²)Max.: 4 mm²
(0.01 in²)
Description
CUL Technical Data (UL1059）
Wire Range -
24-10AWG
IEC Technical Data (IEC 60947-7-2)
Overvoltage Category -
III
Contamination Class -
3
Impulse withstand voltage -
6KV
Material
Insulation Material -
PA66
Flame relardant rating -
UL94V-0
Conductor Material -
Copper alloy
Plating of conductor surface -
Sn plated
Other Data
Length/Height/Thickness [mm] -
83.8/45.9/6.2
Stripping Length [mm] -
10-12
Approval -
/
Catalogs
GUV4-202-PE
3 Pages
