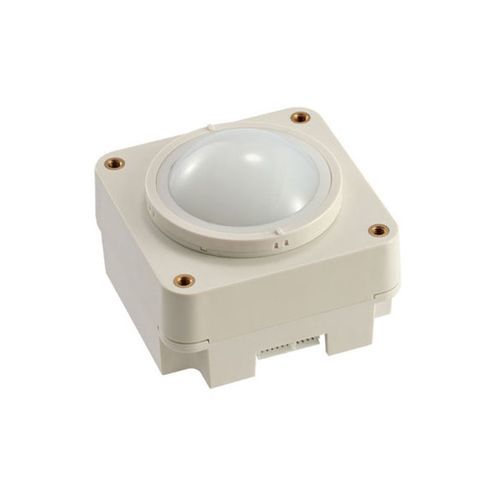

Mechanical trackball CK-TR7171-50M2

panel-mount2 inch (50 mm)USB

-Embedded trackball with mounting holes -50.0mm mechanical trackball with more than 10 million cycle lifetime -Bearing rolling with excellent operation feeling without any noise. -Rate Sensitive Dynamic Resolution Description: 50.0mm IP65 rated waterproof rugged and sealed medical B-ultrasound trackball module for medical application, this is a rugged sealed mounting trackball module with mounting holes. Technical data: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: - Industrial level Humidity Resistant: - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Lifetime of trackball mouse: - more than 10 mil. operations Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 0.3KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 50mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Damp heat test: - at + 40º C: 21 days, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 OS: - Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android Trackball mouse: - 50.0mm mechanical trackball with bear rolling technolog with excellent operation feeling without noise with more than 10 million cycle lifetime
