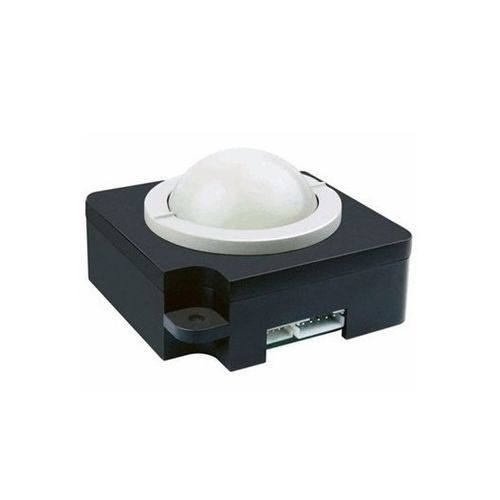

Mechanical trackball CK-TR5959-36M2

panel-mount36 mmUSB

-Embedded trackball with mounting holes -36.0mm mechanical trackball with more than 10 million cycle lifetime -Bearing rolling with excellent operation feeling without any noise -Rate Sensitive Dynamic Resolution Description: IP65 36.0mm rugged and sealed medical B-ultrasound trackball module for medical application, this is a rugged sealed mounting trackball module with mounting holes. Embedded solution design that suitable to be used in control panels or medical equipment Technical data: Operating Temperature: - -20 °C to +60 °C Storage Temperature: - -30 °C to +70 °C Waterproof rate: - IP65 Shock resistance: - 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: - Industrial level Humidity Resistant: - 100% Vibration resistance: - 5 Hz -200 Hz, IEC 60512-4 Lifetime of trackball mouse: - more than 10 mil. operations Lifespan: - > 3 years MTBF: - >50000H MTTR: - <30min G.W.: - appr. 0.15KGs Supply Voltage: - +5V DC +/- 5% Current Rating: - appr. 50mA EMC Emission: - EN55022(B) Saline mist: - 96 hours, IEC 60512-6 Damp heat test: - at + 40º C: 21 days, IEC 60512-6 Dry heat test: - at + 85º C: 10 days, IEC 60512-6 OS: - Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android Trackball mouse: - 36.0mm mechanical trackball with bear rolling technolog with excellent operation feeling without noise with more than 10 million cycle lifetime
