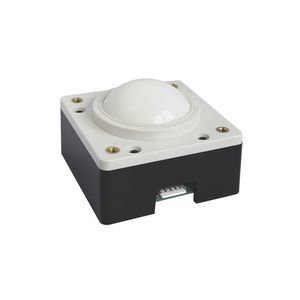

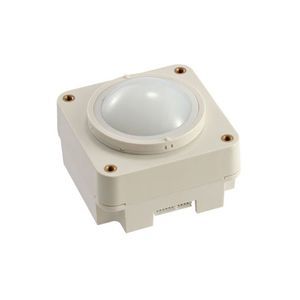

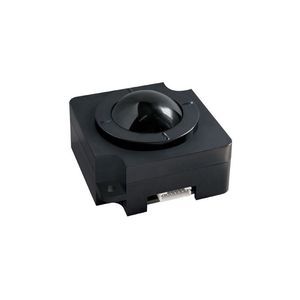

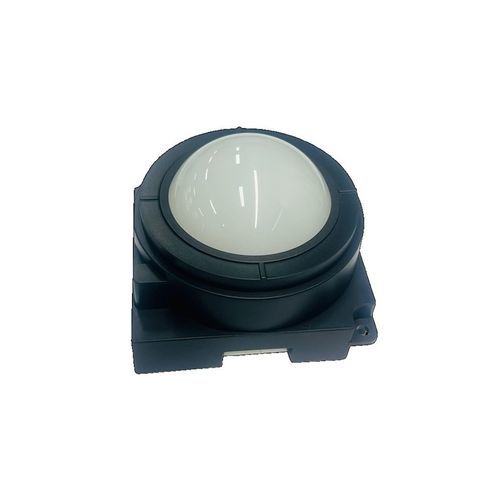

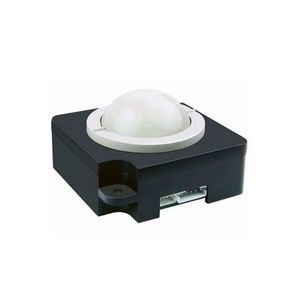

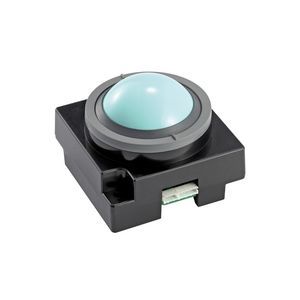

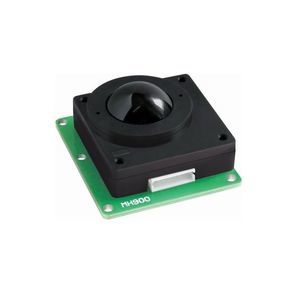

Mechanical trackball CK-TR3IN1-50

panel-mount2 inch (50 mm)rugged

FEATURES: - Embedded trackball - Mounting solution with mounting holes - 50.0mm mechanical trackball - Bearing rolling with excellent operation feeling without any noise. - Rate Sensitive Dynamic Resolution Description: IP65 rated waterproof medical trackball module for medical application, an embedded panel mount solution for B ultrasound medical devices. A 50.0mm trackball module for marine simulation or for industrial control application. An industrial level trackball for harsh conditions. With super high quality and long lifespan, extremely good operation experience without any noise. Application: Medical, hospitals: Marine console, industrial console: Dimensions: 70.0mm x 70.0mm. Export certification: RoHS, CE and FCC Warranty: 12 months Technical data: Operating Temperature: -20°C to +60°C Storage Temperature: -30°C to +70°C Waterproof rate: IP65 Shock resistance: 3 axis 150 m/s² -11 ms, IEC 60512-4 Electronics: Industrial level Humidity Resistant: 100% Vibration resistance: 5 Hz -200 Hz, IEC 60512-4 Lifetime of trackball mouse: more than 10 million operations Lifespan: > 3 years MTBF: >50000H MTTR: 3 years - MTBF: >50000H - MTTR: <30min - G.W.: appr. 0.3KGs - Supply Voltage: +5V DC +/- 5% - Current Rating: appr. 50mA - EMC Emission: EN55022(B) - Saline mist: 96 hours, IEC 60512-6 - Damp heat test: at +40ºC: 21 days, IEC 60512-6 - Dry heat test: at +85ºC: 10 days, IEC 60512-6 - OS compatibility: Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Unix, Mac OSX, Vxworks, Android - Certifications: RoHS, CE, FCC - Warranty: 12 months
