Hydraulic groove-cutting machine KM4000

electric

Overview

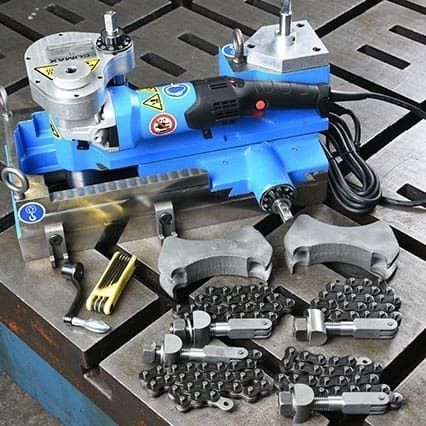

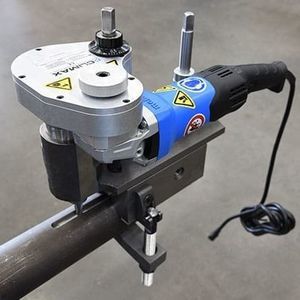

The CLIMAX KM4000 key mill is a portable machine for cutting precision keyways and wide slots on industrial shafts. With a 2" (50.8 mm) sideshift and compact mounting requirements, it reduces the need for multiple cutter sizes and shortens setup time. Engineered for field and shop use, the KM4000 operates on shafts from 4 to 24" (101.6–609.6 mm) diameter and is available for sale or rental. CE and CSA certification options are provided where required.

Applications & Versatility

• On‑site and workshop keyway machining for power generation, mining, marine and heavy equipment maintenance
• Cutting mounting slots, relief pockets and engine keyways
• Field repair, overhaul and planned maintenance operations

Product Advantages

• 2" (50.8 mm) lateral travel (sideshift) enables cutting wide pockets or slots with a single end mill
• Mounts anywhere along the shaft and at any angle for in‑place machining
• Compatible with shafts 4–24" (101.6–609.6 mm) diameter
• Universal-type motor and triple gear reduction deliver high torque for efficient cutting
• Anti‑friction bearings and dovetail ways provide smooth, precise longitudinal and transverse movement
• Self‑centering, self‑aligning contoured base ensures the keyway is centered on the shaft
• Precision Acme leadscrew with roller thrust bearings and zeroing-type depth dial for accurate depth control
• Permanently sealed lubrication allows operation at any angle; motor with soft‑start maintains speed under load
• Rapid longitudinal travel option via drill motor for quicker setups

Technical Data & Notes
Standard spindle sizes: 0.75" (19.05 mm) for inch machines; 20 mm (0.79") for metric machines. Power options: electric, pneumatic or hydraulic. Clamping requirement: 8.5" (215.9 mm) of shaft for standard clamping; 10.5" (266.7 mm) when clamping from an obstruction. Available worldwide for sale or rental; CE and CSA where required.

Specifications
Keyway Length | 8" | 203.2 mm
Keyway Width | 3.25" with 2" sideshift | 82.6 mm with 50.8 mm sideshift
Shaft Diameter | 4 – 24" | 101.6 – 609.6 mm
Power Option | Electric, Pneumatic, or Hydraulic

Features / Technical specifications

• Model: KM4000
• Keyway length: 8" (203.2 mm)
• Keyway width: up to 3.25" (82.6 mm) using 2" (50.8 mm) sideshift
• Sideshift (lateral travel): 2" (50.8 mm)
• Shaft diameter capacity: 4 – 24" (101.6 – 609.6 mm)
• Power options: Electric, Pneumatic, or Hydraulic
• Standard spindle sizes: 0.75" (19.05 mm) inch; 20 mm (0.79") metric
• Clamping requirement: 8.5" (215.9 mm) standard; 10.5" (266.7 mm) from obstruction
• Construction: universal motor, triple gear reduction, anti‑friction bearings, dovetail ways, Acme leadscrew with roller thrust bearings, permanently sealed lubrication, zeroing‑type depth dial
• Certifications: CE, CSA (where applicable)
