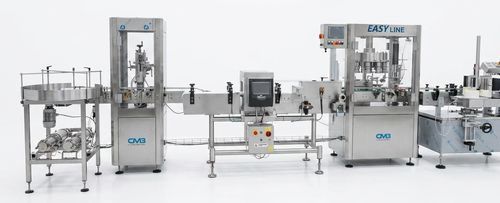

Filling and packaging line for the food industry

automatic

Presentation
Our systems for the food sector are engineered using materials suitable for the complete product packaging cycle. Volumetric dosing units and pump-based versions ensure precise filling across a wide range of products, including those at temperatures up to 120 °C. In addition to filling and capping stations, we can automate further modules to deliver a single integrated line that secures the correct packaging process.

Additional stations that can be incorporated

• Automatic container loading (destackers or robot arms)
• Weighing systems for certification requirements
• Metal detectors for foreign-body control
• Industrial mixers for product preparation or holding
• Heat sealing with film application on containers
• Induction systems for undercap seals
• Labelers and marking systems
• Automatic end-of-line packaging systems

Applications

• Food
• Cosmetics
• Chemicals

Characteristics / technical specifications

• Production speed: up to 2,500 pcs/h with rotary capping
• Dosing (volumetric): range 2 ml – 5,000 ml
• Dosing (pump): up to 30 kg with peristaltic or single‑screw pump
• Process temperature: up to 120 °C
• Container dimensions: width up to 300 mm; height up to 350 mm
• Customization options available
• Constructed with materials suitable for correct food packaging cycles
