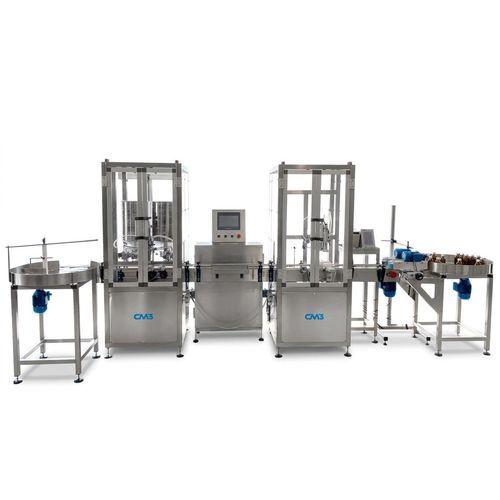

Filling and packaging line with wrapping system

automatic

Product overview
Our systems for the cosmetics industry are designed with materials compatible with the product packaging cycle. Volumetric dosing systems or pumps ensure precise dosing and can handle a wide range of products, including those at temperatures up to 120°. The line is modular and can be configured for filling, capping (rotary) and integrated downstream operations.

Additional stations that can be incorporated

• Automatic container loading systems (destackers or robot arms)
• Weighing systems for certification compliance
• Capping systems for trigger caps or dispensers
• Metal detectors for foreign-body detection
• Industrial mixers for product preparation or holding
• Heat sealing with film application on container
• Induction sealing systems for under-cap films
• Labellers and marking systems
• Automatic end-of-line packaging systems
• Custom modules on request

Technical specifications

• Production speed: Up to 2,500 pcs/h (rotary capping)
• Dosing options: Volumetric dosing or peristaltic pump, range 2 ml – 5,000 ml
• Process temperature: able to handle products up to 120°
• Container width: up to 300 mm
• Container height: up to 350 mm
• Additional modules available: destackers/robot arms, weighing, trigger-cap/dispenser capping, metal detection, mixers, heat sealing, induction under-cap, labeller/marking, end-of-line packaging
• Customisations: available on request
