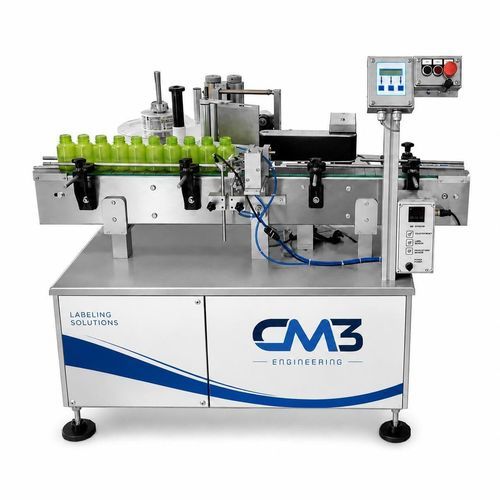

Automatic labeler

for bottlesfor jarswrap-around

Overview
The single-head labelers from CM3 Engineering deliver precise, reliable application of self-adhesive labels from reels for wrap-around, partial or front-and-back labelling. The optional Indexer module enables accurate positioning for single wrap, partial labels or combined front/back labels from the same label reel. Machines are supplied with an adaptable conveyor and centralized controls with a digital display. Loading can be manual or integrated into a new or existing production line. Suitable for businesses of all sizes; production speed up to 2,500 pcs/h.

Operation and control

• Uses self-adhesive labels on reels (pre-rolled)
• Adjustable conveyor length to fit formats and production flow
• Single central control unit with digital display for plant settings
• Manual or automatic loading from upstream lines
• Optional Indexer module for precise label positioning

Formats that can be labelled

• Round bottles/jars
• Square bottles/jars
• Elliptical bottles/jars
• Hexagonal bottles/jars
• Octagonal bottles/jars

Application sectors

• Food
• Cosmetic
• Chemical

Technical plant specifications
CONVEYOR BELT LENGTH: 1,500 mm min – 2,000 mm max
WORKING SURFACE HEIGHT: 900 mm ± 50 mm
STANDARD SUPPLY VOLTAGE: 220/240 V AC, 50/60 Hz, single phase
POWER ABSORBED: 800 W
WEIGHT: approx. 220 kg
DIMENSIONS: Length 2.00 m
PROTECTION: IP 41
NOISE AT 1 m DISTANCE: 70 dB
LABEL SPECIFICATIONS: Minimum label height 8 mm

Characteristics / technical specifications

• Conveyor belt length: 1,500 mm min – 2,000 mm max
• Working surface height: 900 mm ± 50 mm
• Supply voltage: 220/240 V AC, 50/60 Hz, single phase
• Power absorbed: 800 W
• Weight: approx. 220 kg
• Dimensions: length 2.00 m
• Protection: IP 41
• Noise at 1 m: 70 dB
• Minimum label height: 8 mm
• Production speed (with Indexer module): up to 2,500 pcs/h
• Centralized control unit with digital display
• Conveyor configurable for manual or automatic loading
• Optional Indexer for wrap, partial or front/back labelling
