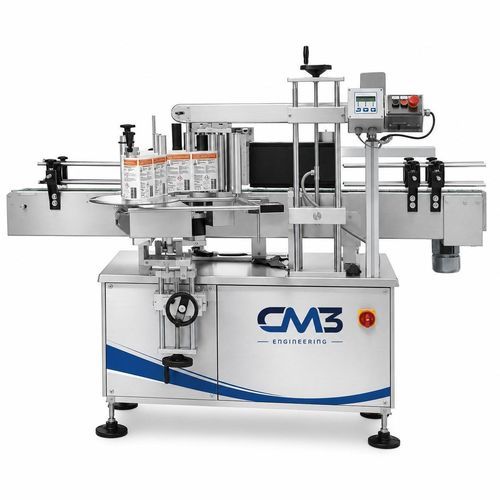

Fully-automatic labeler

for bottlesfor tubescarton

Overview
CM3 Engineering assortment of front and back labelling machines includes standard and custom solutions for industrial production lines. Machines are engineered for continuous operation and adapted to medium and high‑volume manufacturing across multiple sectors.

Assortment

• Industrial machines for front and back labelling
• Industrial machines for front-only labelling
• Industrial machines for back-only labelling
• Industrial machines for security-seal/closure labelling

Pharmaceutical applications
Machines are validated for pharmaceutical and related productions and typically handle:

• Vials and ampoules labelling
• Pharmaceutical boxes and cartons labelling
• Lean products labelling (tubes, test tubes, small profiles)

Product formats
Front and back labelling systems can apply labels to the following product formats:

• Round containers
• Square containers
• Elliptical containers
• Hexagonal containers
• Octagonal containers

STANDARD MODEL TECHNICAL FEATURES (table)
EC Certificate
Driven by main conveyor belt A.C. gear‑motor with transport speed adjustment through inverter
Stepper motor for labelling head control
Conveyor belt length: 2000 mm
Worksurface height: 900 mm ± 50 mm
Standard supply voltage: 220/240 V AC 50/60 Hz single‑phase
Power consumption: 800 W
Weight: About 320 kg
Overall size (standard model): Length 2000 mm; Width 1200 mm; Height 1100 mm
Protection rating: IP41
Noise level at 1 m distance: 70 dB

Technical specifications

• EC Certificate
• Drive: main conveyor belt A.C. gear‑motor with inverter speed regulation
• Stepper motor for precise labelling head positioning
• Conveyor belt length: 2000 mm
• Worksurface height: 900 mm ± 50 mm
• Supply voltage: 220/240 V AC, 50/60 Hz, single‑phase
• Power consumption: 800 W
• Approx. weight: 320 kg
• Dimensions (L×W×H): 2000×1200×1100 mm
• Protection rating: IP41
• Acoustic level at 1 m: 70 dB
