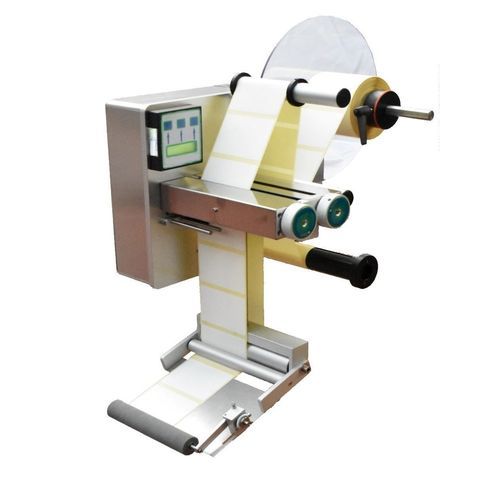

Labeling head CM series

Product overview
CM3 Engineering labelling heads are designed to apply self-adhesive roll-on labels on packages of various geometries. The materials and construction ensure easy installation, long service life and limited maintenance. Compact size and a wide range of clamping modules allow rapid adaptation to many installation requirements, including retrofit on existing packaging lines. Accurate application, reliability and simple operation support cost-effective labelling operations.

Application sectors

• Food
• Cosmetic
• Chemical

Available models / versions
RIGHT VERSION: CM2018 DX, CM2025 DX
LEFT VERSION: CM2018 SX, CM2025 SX

Characteristics / technical specifications

• Label width: M2018 = 190 mm; M2025 = 245 mm
• Roll label maximum external diameter: 360 mm
• Roll label standard internal diameter: 45 / 76 mm
• Label stop delay adjustment via electronic digital setting
• Stepper motor activation
• Stop label accuracy: +/- 0.5 mm
• Label distribution speed: minimum 3 m/min; maximum 30 m/min
• Standard supply voltage: 220/240 V AC 50/60 Hz single-phase
• Power consumption: 200 W
• Weight: about 20 kg
• Size (base x height x depth): 400 mm x 400 mm x 110 mm
• Protection rating: IP41
• Noise level at 1 m distance: 70 dB
