Blue laser module

cuttingengraving

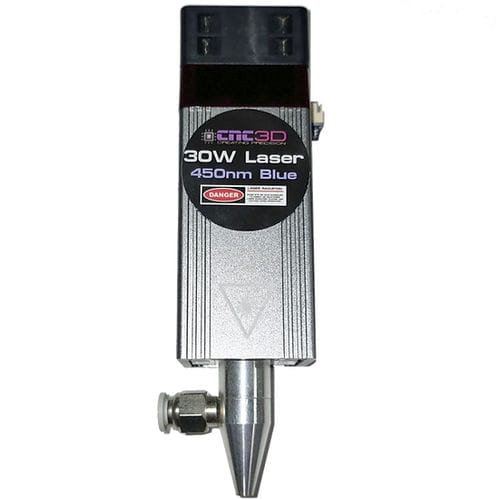

We have searched for a long time for a small form factor laser that can easily be added to our existing CNC machines that has the ability to actually cut rather than just engrave. Presenting this 30w 450nm blue laser that has an air assist system designed for clean and crisp cutting on timbers and some acrylics and also includes an easy magnetic laser safe cover for engraving as well. The laser itself consumes 30w of power at 24V and the design consists of 2 x 8w 450nm laser diodes running at 100% duty cycle that have their beams converged into 1 powerful laser beam. IMPORTANT NOTE: This laser and air pump requires 24 volts DC power and can NOT be powered directly from our Nighthawk controller. It will require atleast a 24V 5A power supply to run this laser and pump effectively. Please take note that the required voltage of this laser is 24V DC. Included with the Laser system - 30w 450nm Blue laser - Air assist nozzle attachment - Red plastic magnetic engraving attachment - Air assist Hose - 24V Air pump - Wiring breakout loom for laser (~100mm length) - Mounting bracket suits QB2 / QueenBee / SharpCNC / YouCarve *Optional extra* - 24v 160w Meanwell Power Supply *Optional extra*
