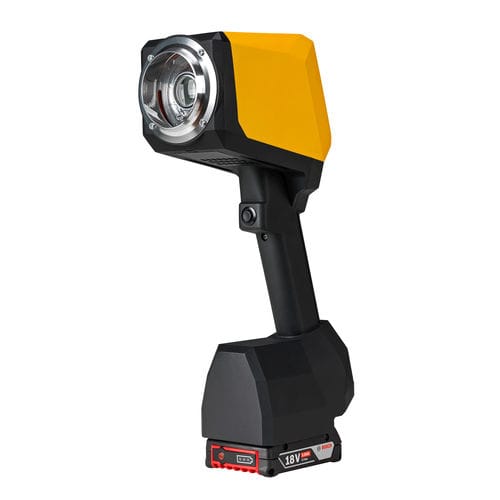

Coating thickness gauge coatmaster Flex

stationaryhandheldoptical

Solution for contactless coating thickness measurement. Handheldcoatmaster Flex Process control Complete documentation Material saving coatmaster Flex Just pick it up and start measuring. This handheld is the most innovative one in terms of contactless coating thickness measurement. Would you like to measure the coating thickness early in the process in order to save material and avoid coating mistakes? Then the coatmaster Flex is the right measurement device for you. Optimize your process and get your coatmaster Flex now. If you are not completely satisfied within the first 30 days after delivery, you can return it free of charge. Convince yourself of the efficiency and save up to 6'000 Euro per month of coating material per production line. Reduce rejects and increase production quality. Technical Data Wet paints before drying 1 – 400 µm Powder coatings before curing 1 – 400 µm Cured powder / dried paints 1 – 1000 µm Measuring time 0.25 s Distance tolerance 2 – 15 cm Tilt tolerance ± 70° Measurement on moving parts yes Relative standard deviation < 1 % Waiting time between two measurements 2 s
