Fabric curtain Smokemaster SM5

fire protection

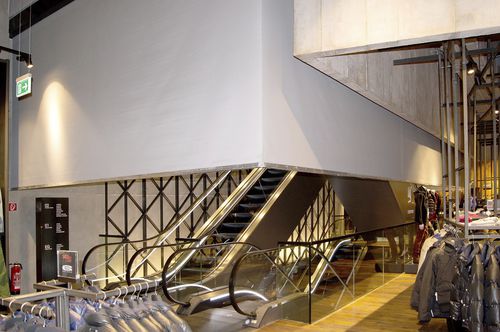

A Smokemaster SM5 automatic smoke curtain prevents the movement of smoke and heat generated by a fire from one area to another by channelling or containing the smoke and heat. The smoke curtain has fixing options to suit all types of ceiling configurations and can be integrated into either a suspended or a solid ceiling. It remains hidden until required. The smoke curtain comprises a flexible heat resistant fabric that is impervious to smoke and hot gases, wound around a circular tube. Upon receiving a signal from the fire detection or on loss of power the curtain automatically unwinds to its operational position. Smokemaster SM5 smoke curtains are well suited to most industrial and commercial buildings as they are unobtrusive, moving to their active position only when needed. Watch SM5 in action. Features and benefits High performance - Designed to operate for 1,000 cycles at normal ambient temperatures in the range from 0⁰C to 60⁰C, and to withstand hot air and smoke at temperatures up to 600⁰C for up to 120 minutes once only. A wide range of options – Smokemaster can be adapted to the physical constraints of the building. All system components – headboxes, fabric, bottom bars, drive systems – can be customised to your needs. See our options page by clicking the tab above for further information.
