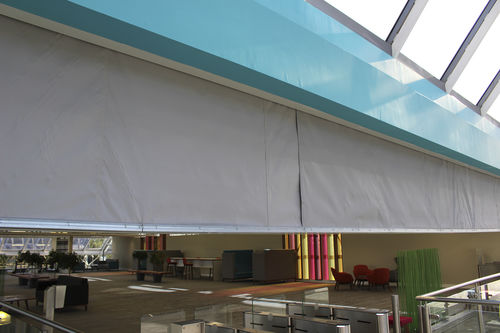

Fabric curtain FM-1

fire protection

A fire curtain is used where, if there is a fire, it is necessary to create a temporary barrier within an opening that seals off the area on fire. The curtain descends and prevents any fire and smoke from spreading from one area to another. It also allows people access to protected escape routes without any loss of fire resistance. A FM-1 fire curtain comprises a flexible fire-resistant fabric that is wound around a circular tube. Upon receiving a signal from the fire alarm system or on loss of power the curtain automatically unwinds to its operational position. FM-1 fire curtains have been tested as fire barriers in accordance with EN 1634-1, providing protection for a defined period and at a defined maximum temperature. Features and benefits High and certified performance - FM-1 fire curtains have been tested as fire barriers for either 60, 120 or 180 minutes resistance, in accordance with EN 1634-1. They have E60-C, E120-C and E180-C ratings in accordance with EN 13501-2, thereby achieving an integrity rating for either 60, 120 or 180 minutes. A FM-1 fire curtain has achieved a successful a continuous life cycle test (10,000 cycles) in accordance with DIN 4102-18. The E120-C and E180-C versions also have class EW 30 in accordance with EN 13501-2, which demonstrates that the fabric re-radiates only a limited amount of heat. No power needed to operate it – A FM-1 fire curtain unwinds to its operational position under the influence of gravity in a “gravity fail-safe” manner without the need for power.
