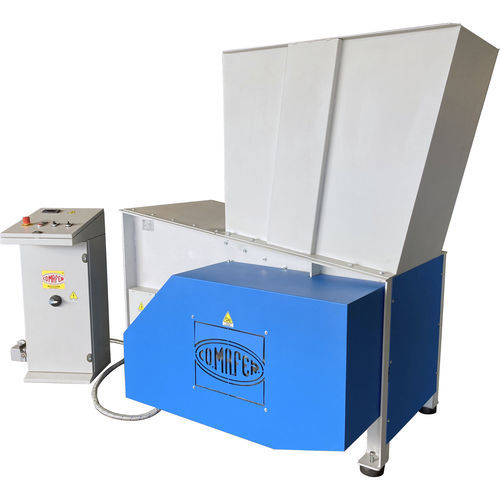

Wood waste grinding mill DINAMIC 600 EVO

single-rollerhorizontal400V three-phase

The ideal grinder for medium-sized carpentry businesses. This is a single-shaft machine with hydraulic pusher box for grinding carpentry wood waste with min./max. 8-17% moisture content. The ground waste can be collected via suction, using the intake provided and combined with chips in the suction system and briquetted. Operation It is based on the operation of a roller equipped with special inserts. A material containment hopper is fastened to a mechanical block fitted with a plunger tray driven by a hydraulic power pack. The product to be ground is consequently pushed towards an insert holder roller which causes it to be crushed. The final size of the ground pieces is determined by a special mesh BASE UNIT Entirely redesigned new-generation base unit, consisting of an ultra-thick and sturdy arc-welded rectangular frame treated with powder coating. The base unit is fitted with a Tramec parallel-shaft gearmotor with pulley and belt transmission system that drives the grinding roller, bearing supports sealed against dust and liquids, a hydraulic power pack for the operation of the plunger tray, a broad loading hopper that collects and channels the material in the tray and a suction nozzle for guaranteeing adequate evacuation of the ground product. TRAY UNIT The tray unit consists of a hydraulic cylinder boasting excellent construction quality and reliability (its position is detected by mechanical limit switches) that drives the tray backwards so that it can receive the material falling from the hopper and forward to push the material against the grinding roller.
