Protective barrier ABC

fall-arreststeel meshgalvanised steel

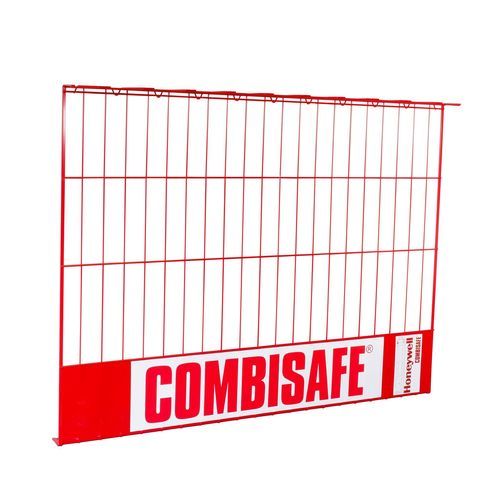

The Steel Mesh Barrier Lightweight Class ABC is a lightweight and versatile barrier designed to provide hard-mesh coverage with impact-absorbing capacity. Each weld can withstand a force of 500kg, ensuring robust protection on site. The barrier features a closed return for enhanced debris containment and reinforced edges to prevent site damage, combining guardrail, toeboard, and debris mesh in a single product.

Key Features

• ART. no. 3242
• Size: 1756mm x 1150mm
• Weight: 10.0kg
• Powder-coated finish
• Available in galvanized finish
• Complies with EN 13374 Class A, B, C
• S-Combisafe-G-QA-17 EN13374: 2013+A1:2018 Product Compliance Certificate

Most common attachments S

• Flexi Attachment
• Façade Bracket
• Multifoot
• Stair Angle
• Balcony Attachment

Most common Posts S

• Safety Posts_Small
• Adjustable Safety Post_Small
• Adjustable Safety Post_Large

Most common attachments C

• Facade Bracket
• Stair Attachment
• Flexi Attachment MkIII_ Large
• Multifoot
• Multi Clamp MkII

Most common Posts C

• Steel Mesh Barrier Holder
• Safety Post

Caractéristiques / spécifications techniques

• Product type: Steel mesh safety barrier
• Dimensions: 1756mm x 1150mm
• Weight: 10.0kg
• Finish: Powder-coated, also available in galvanized
• Compliance: EN 13374 Class A, B, C
• Impact resistance: Each weld withstands 500kg force
• Integrated guardrail, toeboard, and debris mesh
• Closed return for debris containment
• Reinforced edges for site protection
• Product Compliance Certificate: S-Combisafe-G-QA-17 EN13374: 2013+A1:2018
