Protective barrier 324

galvanised steelsteel meshrobust

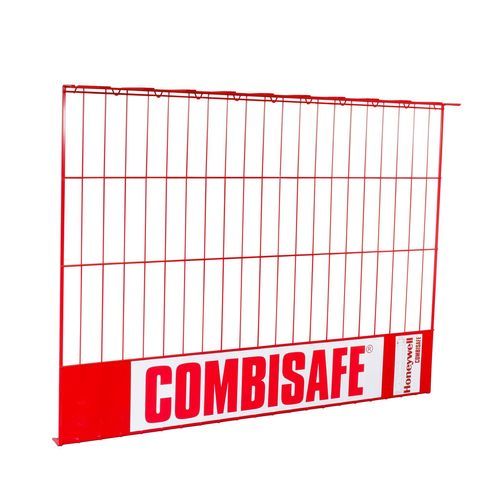

The Steel Mesh Barrier Lightweight Class ABC is a versatile and lightweight safety barrier designed to provide hard-mesh coverage with impact-absorbing capacity. Each weld is engineered to withstand a force of up to 500kg, ensuring robust protection on construction sites. The barrier features a closed return design for enhanced debris containment and reinforced edges to prevent site damage. It combines guardrail, toeboard, and debris mesh functionalities in a single product, making it an all-in-one safety solution.

Key Features

• Lightweight and versatile hard-mesh barrier
• Impact-absorbing capacity with each weld tested to withstand 500kg force
• Closed return design for improved debris containment
• Reinforced edges to minimize site damage
• Functions as guardrail, toeboard, and debris mesh in one product
• Powder-coated finish for durability
• Available in galvanized finish
• Complies with EN 13374 Class A, B, C standards
• Supplied with S-Combisafe-G-QA-17 EN13374: 2013+A1:2018 Product Compliance Certificate

Most Common Attachments S

• Flexi Attachment
• Façade Bracket
• Multifoot
• Stair Angle
• Balcony Attachment

Most Common Posts S

• Safety Posts_Small
• Adjustable Safety Post_Small
• Adjustable Safety Post_Large

Most Common Attachments C

• Facade Bracket
• Stair Attachment
• Flexi Attachment MkIII_ Large
• Multifoot
• Multi Clamp MkII

Most Common Posts C

• Steel Mesh Barrier Holder
• Safety Post

Characteristics / Technical Specifications

• Article number: 324
• Size: 1474mm x 1150mm
• Weight: 8.7kg
• Finish: Powder-coated (also available in galvanized)
• Compliance: EN 13374 Class A, B, C
• Product Compliance Certificate: S-Combisafe-G-QA-17 EN13374: 2013+A1:2018
