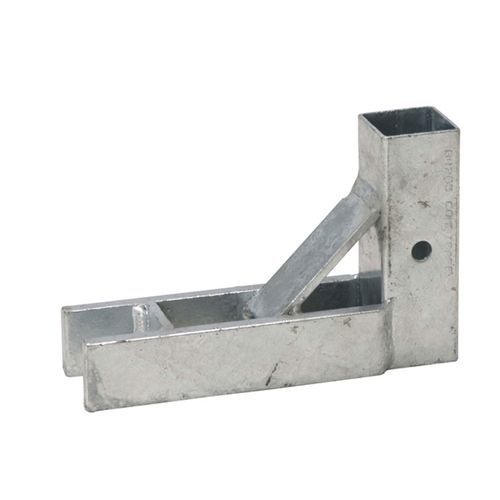

Lifting attachment system 1270

The Bridge Edge Attachment is a compact and rapidly-deployed attachment, designed primarily for construction joints on bridgeworks and other starter bar applications. The attachment clamps onto the reinforcement where it protrudes from concrete or timber beams and can be reversed to change the offset from the slab edge to the post. Once dismantled, this attachment can also be fixed directly to a vertical face.

Key Features

• Clamping width: 10-100mm
• Maximum height that can be clamped: 200mm
• Weight: 4.7kg
• Hot-dip galvanised finish
• Complies with EN 13374 Class A

Compatible Accessories

• Adjustable Safety Post_Large
• Adjustable Safety Post_Small
• Safety Posts_Small

Technical Specifications

• Product code: ART.no. 1270
• Clamping width: 10-100mm
• Maximum clamping height: 200mm
• Weight: 4.7kg
• Finish: Hot-dip galvanised
• Compliance: EN 13374 Class A
