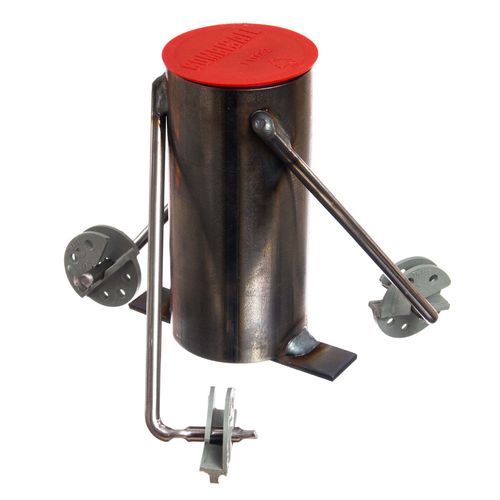

Mounting bracket 1223

The Façade Bracket is designed to provide a post socket on a vertical face, making it an essential attachment for safety systems on construction sites. It is compatible with the Precast Edge Attachment (ART. no. 1236) but can also be installed independently. The bracket features a keyhole top fixing and a slot at the bottom, allowing for quick and easy installation. Its offset ensures that the toeboard return on the Steel Mesh Barrier forms a tight seal against the structure, enhancing containment and safety.

Key Features

• Designed for use with Precast Edge Attachment (ART. no. 1236) or as a standalone solution
• Keyhole top fixing and bottom slot for fast installation
• Offset ensures tight seal with Steel Mesh Barrier to improve containment

Technical Specifications / Characteristics

• Article number: 1223
• Weight: 1.9 kg
• Finish: Hot-dip galvanised
• Compliance: EN 13374 Class A
• Product Compliance Certificate: S-Combisafe-G-QA-17 EN13374: 2013+A1:2018
