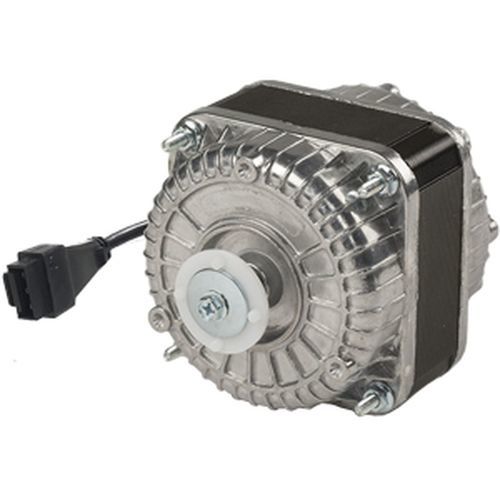

Asynchronous motor 00, 18, 26, 26/18 series
AC60 Vsquirrel cage

Asynchronous motor - 00, 18, 26, 26/18 series - COMESTERO SISTEMI - AC / 60 V / squirrel cage
Asynchronous motor - 00, 18, 26, 26/18 series - COMESTERO SISTEMI - AC / 60 V / squirrel cage
Asynchronous motor - 00, 18, 26, 26/18 series - COMESTERO SISTEMI - AC / 60 V / squirrel cage - image - 2
Asynchronous motor - 00, 18, 26, 26/18 series - COMESTERO SISTEMI - AC / 60 V / squirrel cage - image - 3
Asynchronous motor - 00, 18, 26, 26/18 series - COMESTERO SISTEMI - AC / 60 V / squirrel cage - image - 4
Asynchronous motor - 00, 18, 26, 26/18 series - COMESTERO SISTEMI - AC / 60 V / squirrel cage - image - 5
Add to favorites
Compare this product

Characteristics

Type
asynchronous, AC
Voltage
60 V
Configuration
squirrel cage
Protection class
IP44
Power

Max.: 110 W
(0.15 hp)

Min.: 5 W
(0.01 hp)

Intensity

Max.: 1.01 A

Min.: 0.2 A

Rotational speed

1,300 rpm, 1,550 rpm
(8,168.1409 rad.min-1, 9,738.9372 rad.min-1)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: -30 °C
(-22 °F)

Description

Code Serie xxP Description Voltage: 100 ~120 V - 50/60Hz 220 ~240 V - 50/60Hz Output power: from 5W to 34W Protection: IP 42 (IP44 on request) Duty cycle: Continuous operating (S1) Insulation Class: B Protection Class: Class I Operating Temperature: -30°C ~ 50°C Bearing Type: Sleeve Bearing Life expectancy: 20.000 hours Available with mounting type: 00;18;26;18/26 Certifications: CE; VDE only for 220 ~240 V;UL only for 100 ~120 V
