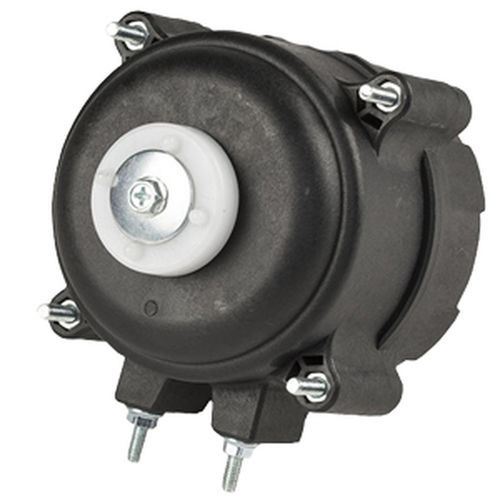

Electronically commutated motor FL-SME seriesDC220 V240 V
Add to favorites
Compare this product
Characteristics
- Type
- electronically commutated, DC
- Voltage
- 220 V, 240 V
- Protection class
- IP65, ATEX
- Other characteristics
- high-speed, energy-saving, reversible
- Power
Min.: 5 W
(0.01 hp)Max.: 32 W
(0.04 hp)- Rotational speed
Min.: 500 rpm
(3,141.5927 rad.min-1)Max.: 2,300 rpm
(14,451.3262 rad.min-1)- Operating temperature
Min.: -30 °C
(-22 °F)Max.: 50 °C
(122 °F)
Description
Code
FL-SME (EC MOTOR)
Description
Electronically Commutated Motor
Voltage: 220-240VAC
Output Power: 5W;15W;20W
Cover: Thermoplastic
Operating mode: S1 (continuous operating)
Compliance with EN60335-1, EN60335-2-24, EN60335-2-89
Motor insulation class: B (F on request)
IP65 - ATEX on request
Operating temperature: from -30°C to +50°C
Ball bearing - Service life 50.000 hours
Options
Available on request with 3°/4° wire (reversible rotation, 2°speed, 0_10VDC Full speed control).
Available on request 24VDC or 115VAC
ITS 14 ATEX 47996 on request
Max speed on request 1800rpm
