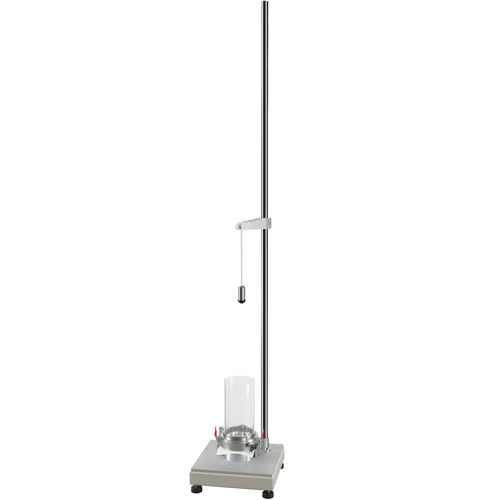

Impact testing machine QC-633

manualfor plasticsfor plastic film

Description This tester conforms to test standard applicable for method A and method B. Clamp the plastic film on around specimen holder (DIA. 127mm). The impact head used in method A use Ø 38.1mm and in method B is Ø 50.8mm. The dart is fixed top the tester. After a the dart is selected and the height is adjusted, release the dart with the electronic magnet. Film’s resistance to impact can thus be tested. Generally, 1 specimen is tested at a time and after 20 tests, record height and dart weight under broken and unbroken conditions for every test. This serves as a reference to the film’s resistance to impact. Keyword: Impact Tester, drop test equipment, drop darts tester, film impact tester, drop test. Keyword:Impact Tester, drop test equipment, drop dart tester, film impact tester, drop test. Specifications Test Method A / B Test Height 66 cm (26") / 152.4 cm (60") Hammer Diameter Ø38.1㎜ / Ø50.8㎜ Hammer Material Fiber-reinforced plastic / Stainless Steel Dart bar diameter Stainless Steel Hammer weight (with bar) 50 ± 2 g、115 ± 2g / 300 ± 5 g、360 ± 5g Load Weight 5gx10、15gx10、30gx8、60gx8、120gx8/ 15gx2、45gx8、90gx8、180gx3 Sample Holder Inside Diameter Ø127 mm，Outside Diameter Ø147mm Total Weight 1995g / 2010g
