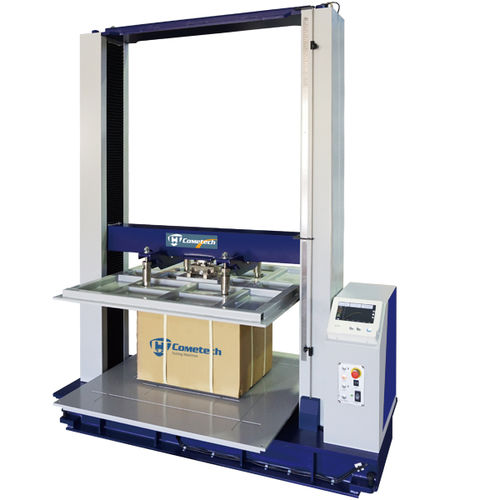

QC-121D1 is used for testing strength of large packing materials, such as carton, foam, Styrofoam, etc. It simulates how boxes react under large force, which is an important test in Logistics/ Warehouse management. QC-121 has multiple sensors so that it can provide test results that are closer to real situation; Upper compression platen can switch between U-joint or Fixed platen, allowing users to adjust base on their needs.Display on the controller can analyze basic test data,and show graph. If users want to output test report, store test data, or do advance analysis, we also has an optional software to go along with.
Key words: Box compression, Box test, Packaging test, Compression tester, Compression test, Box compression test
Conform to Standards
ASTM D4169
ASTM D642
ISO 12048
ISO 2872
DIN 55440-1
GB/T T4857-4
GB/T 16491
JIS Z212
TAPPI T804
Industry
Paper, Food, Beverage, Package
Application
ASTM D642、TAPPI 804 Box Compression test
Specifications
Model
A/B/C/D
Test Space
A:100 x 100 x 120 cm
B:120 x 120 x 120 cm
C:100 x 100 x 120 cm
D:120 x 120 x 120 cm
Max Capacity
A:2,000kg(20kN)
B:2,000kg(20kN)
C:5,000kg(50kN)
D:5,000kg(50kN)
Platen Type
Fixed, U-joint,
Adjustable
Units
Force:gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure:Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution
23 bits
Force Precision
1/10,000
Stroke Resolution
0.00125mm
Test Speed
10~200 mm/min
Hardware Protection
Upper/ Lower limit, Emergency stop button
Power Source
DC motor
Connect to PC thru
RJ45(TCP/IP)
