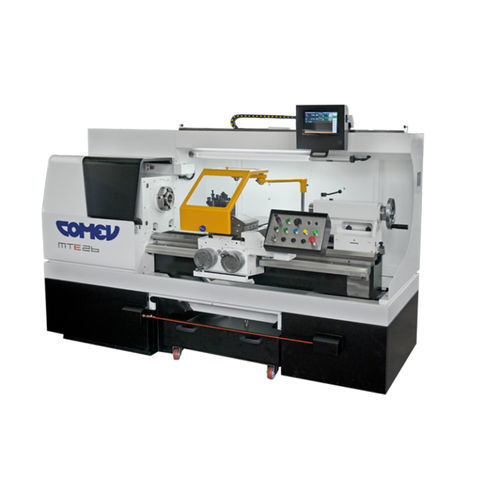

CNC lathe MTE horizontal2-axisprecision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Performance
- precision, high-productivity
- Diameter
185 mm, 265 mm, 440 mm, 520 mm
(7.28 in, 10.43 in, 17.32 in, 20.47 in)- Spindle speed
Max.: 2,000 rpm
(12,566.371 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Rapids on X
3 m/min
- Rapids on Z
3 m/min
- Nominal power
10.7 kW
(14.5 hp)- Overall lenght
2,532 mm, 3,032 mm, 3,532 mm
(100 in, 119 in, 139 in)- Overall width
1,506 mm
(59 in)- Overall height
1,790 mm
(70 in)
Description
The natural evolution of the classic mechanical lathe with the potential offered by electronics.
Repeatability, precision and easy handling with modern styling for improved functionality, less operator fatigue and higher productivity.
The MTE lathe is medium-sized with a generous 110 mm bar passage (in model 26). Precise and easy to handle, it lends itself in making small to medium sizes. Center height from 220 to 260mm, center distance from 1000 up to 2000mm.
