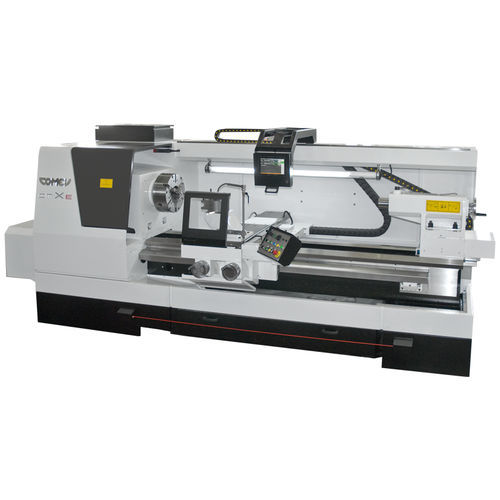

CNC lathe CMXE horizontal2-axisprecision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Performance
- precision, high-productivity
- Diameter
Max.: 900 mm
(35.43 in)Min.: 310 mm
(12.2 in)- Spindle speed
Max.: 2,000 rpm
(12,566.371 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Bar capacity
110 mm, 130 mm, 160 mm
(4 in, 5 in, 6 in)- Rapids on X
3 m/min
- Rapids on Z
3 m/min
- Nominal power
18 kW, 24 kW
(24.5 hp, 32.6 hp)- Overall lenght
4,950 mm, 5,950 mm, 6,950 mm, 7,950 mm, 8,950 mm
(195 in, 234 in, 274 in, 313 in, 352 in)- Overall width
2,050 mm
(81 in)- Overall height
2,020 mm
(80 in)- Weight
Max.: 9,700 kg
(21,385 lb)Min.: 5,550 kg
(12,236 lb)
Description
The natural evolution of the classic mechanical lathe with the potential offered by electronics.
Repeatability, precision and easy handling with modern styling for improved functionality, less operator fatigue and higher productivity.
The CMXE lathe completes the line of electric lathes with even sturdier mechanics, with 500mm wide bed, height from 300 to 450mm, bar passage from 110-130-160, center distance from 2000 to 6000mm. Robust and reliable machine with great power for heavy machining.
