air classifier / particle / high-efficiency
UCX Series

Add to MyDirectIndustry favorites
Compare this product
air classifier / particle / high-efficiency air classifier / particle / high-efficiency - UCX Series
  • Air classifier / particle / high-efficiency
{{requestButtons}}

Characteristics

  • Technology:

    air

  • Separated substance:

    particle

  • Other characteristics:

    high-efficiency

  • Filtration size:

    Min.: 2 µm

    Max.: 300 µm

  • Flow rate:

    Min.: 800 m³/h (28,251.733 ft³/h)

    Max.: 62,000 m³/h (2,189,509.337 ft³/h)

Description

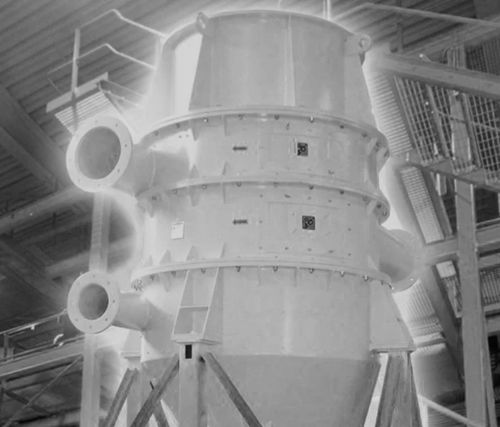

UCX classifiers represent a group of products for ultra fine applications. This classifier series was newly developed for demanding applications where fine particles are to be produced with still high classification efficiency. Comex offers a number of sizes of UCX classifiers which are able to produce materials with the top size of d97 = 1.2 microns for some materials. At the same time they can provide high classification efficiency for coarse particle separation.
