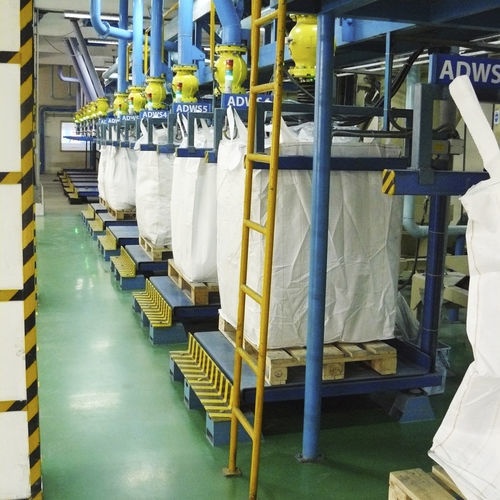

Automatic big-bag filling station ADWS-150

powder

The ADWS-150 system is our solution for filling big-bags with powder material. When designing the ADWS-150 system, we wanted to provide our customers with access to a modern and technologically advanced solution that responds to key packaging and weighing needs. The ADWS-150 filling system consists of an inlet device, a weighing unit and a control cabinet. The individual components of the system are shown below. The main elements of the big-bag filling system Weighing platform and bag holders The weighing platform is located under the big-bag holders. We equipped it with a vibrating device and strain gauges. The latter send a signal to the control unit, where the exact weight of the bag is displayed. Weighing accuracy is +/- 1 kg. The vibrator is activated by the control cabinet at appropriate intervals to achieve uniform filling of the bags. The maximum capacity of the weighing platform is 2 t. Filling device The filling device is equipped with a manual handle and a rubber bellow filled with compressed air, which during operation ensures a tight connection of the big-bag funnel with the filling pipe. In addition, when a new bag is placed on the handle, the independent pneumatic system can inflate the bag so that it assumes the final shape of a cuboid, i.e. a typical product-filled bag. Control cabinet The control cabinet is equipped with a touch panel where all necessary system control functions are available.
