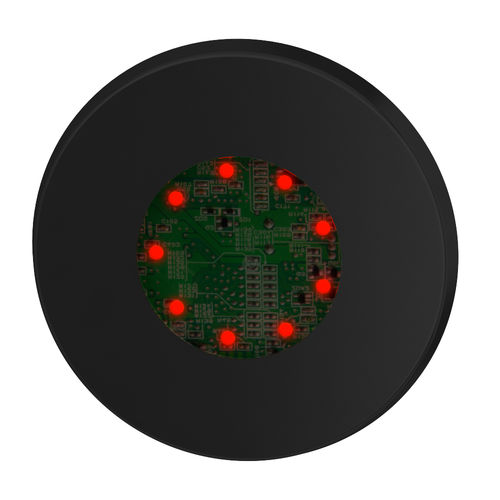

Touch push-button switch KOB 508

IP67LED-illuminatedon/off

Illuminated touch button with optical technology Touch activation, wide range of detectable material Easy detection anywhere on the button PC-configurable "momentary, bistable and timed" functions • Number of cycles: 100 million at 200 mA • Activation distance version "L": About 17 mm  • (others on request) • Electrical contact: 1 PNP NO or 1 NF, 200mA/24V • Functions through SC51 software: • ON/ON = momentary. Simulation of the pushbutton • ON/OFF = bistable. One pulse switches the contacts and another pulse places them at rest • ON/duration/OFF = delayed stop 1 to 999s offset ON "timer" function = delayed start. 1 to 9s • Indication: LED ring • Trim color: black, white, red, green, blue • Opal green color enables lighting of the ring • Attachment: 51mm bore and 2 to 6 D3 invisible screws (not included) • Mounting position: 1 • Material TR90UV • Food contact: yes • Resistance to washing: yes • Anti-vandalism: yes with the new 2015 generation • Electrical connection: 1.5mm² screwless connector without • Water resistance: IP 67 with peripheral silicone seal • Temperature: -25°C to +60°C • Printing: screen printing for the reference on the back of the product
