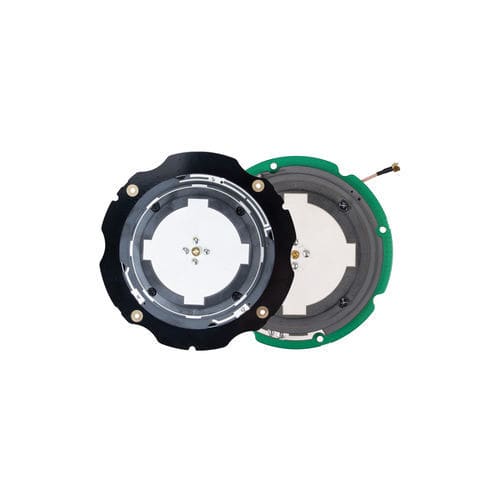

Satellite antenna AT410
BluetoothWiFiGPS

satellite antenna
satellite antenna
satellite antenna
satellite antenna
satellite antenna
Add to favorites
Compare this product


Characteristics

Network
Bluetooth, WiFi, GPS, GALILEO, GLONASS, GSM, satellite
Type
internal
Other characteristics
outdoor, high-performance, multi-band, flexible, multi-function
Applications
measurement, vehicle, for wireless networks, tracking, for UAVs, for IoT applications
Gain

40 dB

Description

The AT410 is a high-performance four-in-one GNSS antenna that can track GNSS, Bluetooth, Wi-Fi and 4G. With flexible transmission and full-constellation tracking capability, it is specifically designed to simplify the development of positioning-related applications for integrators. 1. GNSS, Bluetooth, Wi-Fi and 4G four-in-one GNSS antenna 2. Support GPS L1/L2/L5, GLONASS L1/L2, BeiDou B1/B2/B3, BeiDou Global B1C/B2a, Galileo E1/E5a/E5b/AltBoC, QZSS L1/L2/L5, IRNSS, SBAS and L-Band 3. Easy for integration 4. Low noise amplifier and high gain 5. Sub-millimeter level phase center error with outstanding stability and repeatability 6. High gain for strong low elevation angle signal tracking capability
