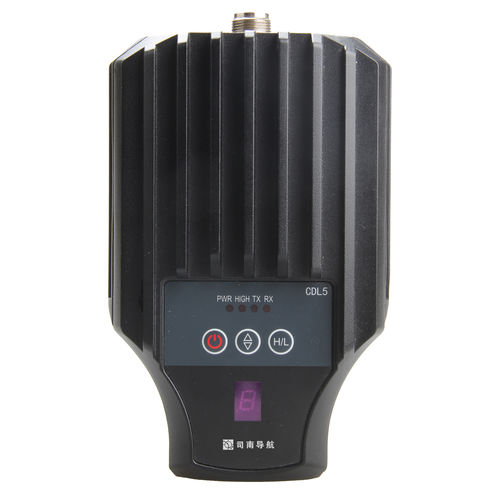

Data modem CDL5

wirelessrepeatermulti-service

CDL5 UHF External Data Link The CDL5 is a three-in-one RX/TX/Repeater UHF external radio with the entire range of 410-470 MHz, designed for GNSS system applications. The high-power design will expand your RTK working range, and the rugged IP67 proof level can protect it from harsh environments. Features - Designed for GNSS RTK Survey Systems - Change Channels From 410-470 MHz in the Field - Channel Spacing at 12.5 kHz - Support 9600/19200 Air Baud Rate - 6 User-defined Power Levels From 2W to 30W - Anti-reverse Power Protection - Super-rugged IP67 Proof Level and Robust Reliability - Work as TX/RX/Repeater Mode - Support Industry Common UHF Protocols TX & RX & Repeater The CDL5 can be worked in both TX/RX mode and is also capable of repeating real-time data, the work coverage can be enhanced by the function of repeaters. Industry Protocols The CDL5 supports industry common UHF protocols, such as Transparent/South/Mac/TT450, which is compatible with most data link related products. IP67 With IP67 waterproof and dustproof level and fully metal construction, the CDL5 provides high performance and rugged dependability for the toughest environment.
