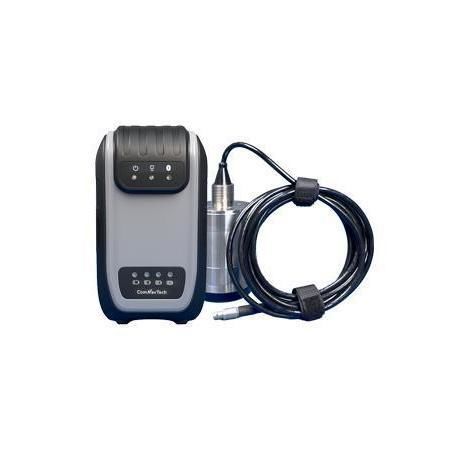

Compact echo sounder HYD10

single-beam

Overview

The HYD10 Portable Echo Sounder by ComNav is a compact, field-ready instrument for automatic depth measurement and hydrographic surveys. Built on a Linux industrial platform, it supports RTK input and wireless connections to simplify survey workflows while delivering stable, high-resolution depth data.

Key features

• High accuracy depth measurement with 1 cm resolution and ±1 cm + 0.1% × h accuracy
• Lightweight, portable design for fast deployment
• Wireless connectivity: Bluetooth 5.0 and WiFi for mobile device link and RTK integration
• Integrated Survey Master software combining depth and positioning workflows
• Rugged probe construction (316 stainless steel) with IP67 protection
• Long-lasting lithium battery with approx. 8 hours operation

Functional details

• High accuracy: Next-generation ultrasonic processing and high S/N circuit design provide precise detection of shallow variations and underwater obstacles.
• Integrated workflows: Survey Master software merges hydrographic modules and RTK surveying to produce synchronized depth + positioning datasets without switching systems.
• Wireless convenience: Stable Bluetooth link to mobile devices and WiFi-based RTK integration remove the need for complex wired setups and reduce failure points in the field.

Technical specifications

• Physical

  • Dimensions: Main Unit 137 × 72 × 50 mm; Transducer Ø70 mm × H105 mm
  • Device Weight: 1.2 kg
  • Storage Temperature: -40°C to +70°C
  • Operating Temperature: -20°C to +60°C
  • Buttons / Keypad: Power Button
  • Material, Dustproof & Waterproof: Probe 316 Stainless Steel; IP67
  • Power Consumption: 5 W
  • Lithium Battery: 3400 mAh, operating time ~8 hours
  • External Power Supply: DC 9–28 V
• Performance

  • Operating Frequency: 200 kHz
  • Maximum Sampling Rate: 30 Hz
  • Depth Range: 0.3–200 m
  • Depth Accuracy: ±1 cm + 0.1% × h (h = water depth)
  • Resolution: 1 cm
  • Sound Velocity Adjustment Range: 1300–1700 m/s
  • Beam Angle: 6°
  • Maximum Transmit Power: 300 W
• Communication

  • Data Type: NMEA (SDPT / SDDBT)
  • Operating System: Linux
  • Interface / Port: RS232 / Transducer Interface
  • Bluetooth: BT 5.0 (backward compatible with BT2.x)
