GPS GNSS module K922
GLONASSQZSSADR

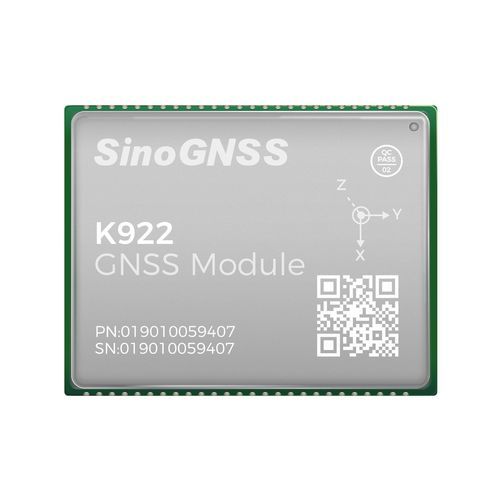

GPS GNSS module - K922 - ComNav Technology Ltd. - GLONASS / QZSS / ADR

Add to favorites

Compare this product

Go to the ComNav Technology Ltd. website for more information

Characteristics

Options: GPS, GLONASS, GALILEO, QZSS, BeiDou, SBAS, ADR

Description

Overview

The K922 GNSS module, powered by the QC7820 SoC, provides centimeter-level positioning with dual-antenna heading and an onboard IMU. It supports full-constellation tracking, advanced anti-interference technologies and industrial CAN/Ethernet interfaces, suited for precision agriculture, driving training, UAVs, CORS and digital construction.

Key features

Support for GPS, BDS-2, BDS-3, GLONASS, GALILEO, NAVIC, QZSS and SBAS
Integrated RF & BB high-precision GNSS SoC
Dual-core CPU architecture
Dual-antenna heading support
PPP-B2b and PPP-HAS service support
GNSS+INS fusion for continuous navigation
Industrial interfaces: UART, CAN (optional), Ethernet, I2C, SPI, PPS

Performance

Signal tracking: GPS L1C/A, L2P, L2C, L5, L1C*; BDS-2 B1I/B2I/B3I; BDS-3 B1I/B3I/B1C*/B2a/B2b*; GLONASS G1/G2/G3*; Galileo E1/E5a/E5b/E5 AltBoC*/E6c*; QZSS L1C/A/L2C/L5/L1C*; SBAS* L1C/A, L5; NAVIC* L5
Cold start: < 20 s (with acceleration capture module)
Hot start (with RTC): < 10 s (typical)
Signal reacquisition: < 1 s
RTK initialization time: < 5 s (D < 10 km)
Initialization reliability: > 99.9 %
Velocity accuracy: ≤ 0.02 m/s
Time accuracy: 20 ns
PPP convergence time: < 15 min
Post processing: 2.5 mm + 1 ppm horizontal; 5 mm + 1 ppm vertical
Single baseline RTK: 8 mm + 1 ppm horizontal; 15 mm + 1 ppm vertical
DGPS: < 0.4 m RMS
SBAS: 1 m 3D RMS
Standalone: 1.5 m horizontal; 3 m vertical
PPP: 0.1 m horizontal; 0.2 m vertical
ADR position error: < 3% of distance travelled without GNSS
Heading accuracy: 0.15° / 1 m baseline

Physical

Size (W × L × H): 16 mm × 21 mm × 2.5 mm
Weight: 1.8 g
Hardware interface: LGA 48 pin
Power consumption: 0.5 W
Input voltage: +3.3 V ±5% DC
Operating temperature: -40 °C to +85 °C
Storage temperature: -55 °C to +125 °C
External LNA power: +3.3 V ~ +5 V ±5% VDC @ 0–100 mA
LNA gain: 20–35 dB (suggested)
Impedance match: 50 Ω

Communications

UART: 2 ports
UART3 or CAN (optional): 1
PPS: 1
EVENT: 1
I2C: 1
SPI: 1
ETH: 1 (pins 12, 13, 25, 26)
Correction data I/O: RTCM 2.x, 3.x
Position data output: ASCII (NMEA-0183) GGA, GSA, GSV, RMC, HDT, VHD, ZDA, VTG, GST, GLL; Binary: ComNav Binary
Position output rate: 1, 2, 5, 10, 20* Hz, 50* Hz
IMU data rate: 1, 2, 5, 10, 20*, 50*, 100* Hz

Inertial sensor

Gyroscope: range ±125°/s; bias repeatability 0.5°/s; bias stability 5°/h; ARW 0.12°/√h
Accelerometer: range ±2 g; bias repeatability 20 mg; bias stability 50 μg; VRW 0.07 m/s/√h

Technical specifications

Model: K922
SoC: QC7820
Onboard IMU: yes (GNSS/INS fusion)
Supported constellations: GPS, BDS-2, BDS-3, GLONASS, GALILEO, NAVIC, QZSS, SBAS
Primary interfaces: UART, CAN (optional), Ethernet, I2C, SPI, PPS
Dimensions & weight: 16 × 21 × 2.5 mm; 1.8 g
Operating voltage & power: +3.3 V ±5% DC; 0.5 W
Operating temperature: -40 °C to +85 °C

Note

Items marked with * are supported only by specific firmware versions.
