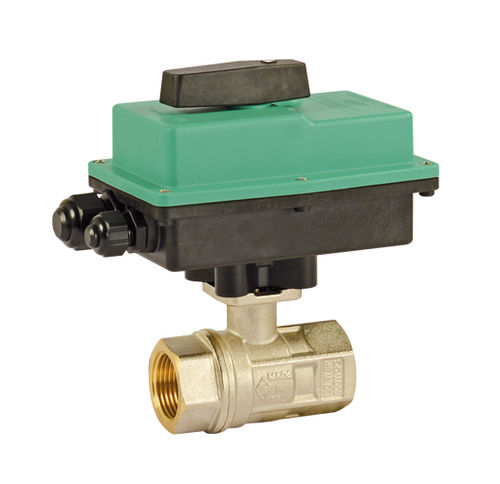

Ball valve DY2 series
electrically-actuatedmanualdosing

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
electrically-actuated, manual
Function
dosing
Body
brass
Applications
industrial, heating, actuator
Number of channels
2-way
Other characteristics
emergency
DN

Min.: 10 mm
(0.394 in)

Max.: 32 mm
(1.26 in)

Description

DIAMANT PRO MOTORISED VALVE – 2 WAY FF BRASS HEATING / COOLING / INDUSTRIAL USE ALL-IN-ONE actuator for 3 points without relay or 2 points with relay connection Class protection: IP67 Operating time: 35 sec for 90° rotation – 11Nm 2-way FF BRASS ball valve, full bore PN40 ACCESSORIES UPON REQUEST • - Actuator override. to activate the valve in case of emergency or black-out (not available for 4 and 12-second version). • - One additcnal opening feedback microswitch (free contact diverter). Example of use: notification of opening. pump relay actuation, boiter control. notification to PLC. etc.) • - One additcnal dosing feedback microswitch (free contact diverter). Example of use: notification of closing. relay actuation, notification to PLC. etc. • - Insulation spacers with and without manual override (see "Valve bodies" section). • - Anti-condensation résistance, for preventing the risk of condensation inside the actuator. • - Cable gland PG 13.5.
