Communication gateway IO-Link Master DR-8-EIP

industrialsecurityEthernet

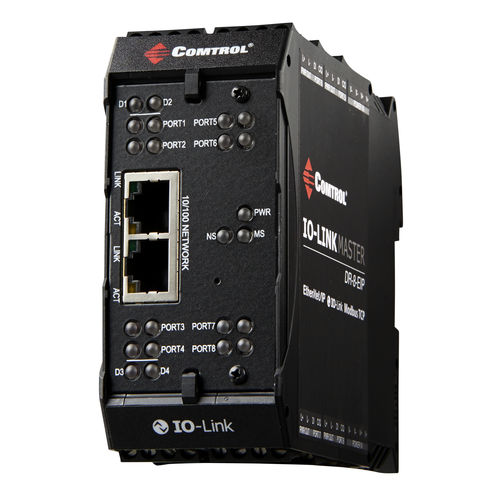

IO-Link Master DR-8-EIPThe IO-Link Master DR-8-EIP provides eight IO-Link ports and two dedicated DIO ports featuring EtherNet/IP™ communication and dual Ethernet ports with screw terminal connections in a compact DIN rail design.Part Number: 99590-6Newer model available at 99675-0 Eight port IO-Link Master to EtherNet/IP™ with additional digital inputs on every port allowing for a possible 10 DI ports with the two dedicated DI/DO ports Screw terminal connectors for IO-Link, Power, and Digital IO IP20 DIN rail mount enclosure Dual Ethernet ports MultiLink™ – Simultaneously provides IO-Link device access to multiple controllers EtherNet/IP™ Class 1 (Implicit) and Class 3 (Explicit) interfaces EtherNet/IP™ and Modbus TCP access to IO-Link process, event, and service data HMI, SCADA, and PLC access to IO-Link ISDU blocks without complex programming EDS files and sample programs Convenient EtherNet/IP Write-to-Tag/File, Read-from-Tag/File data exchange option Supports OPC UA Powerful web GUI for configuration and diagnostics, including: IO-Link device management using the IO-Link device manufacturers IODD file for easy device configuration, Automatic data storage (upload and download), Manual data storage (upload and download), Device validation, and Data validation. Works with PortVision DX - a discovery management application LEDs for device, network, and port status Wide operating temperature (-40° to +70°C) IO-Link V1.0 and V1.1 compatibility IO-Link COM1, COM2 and COM3 (230K baud rate) support Accredited IO-Link Test Center
